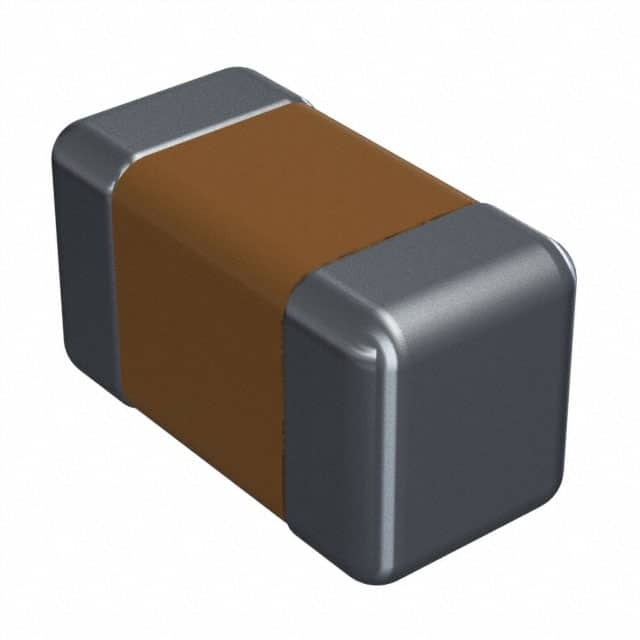

Same model may have multiple batches, images only for reference.
04025C561JAT2A
Same model may have multiple batches, images only for reference.

04025C561JAT2A

Part No 04025C561JAT2A
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Description CAP CER 560PF 50V X7R 0402
Datasheet
04025C561JAT2A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr AVX Corp/Kyocera Corp
Package Tape & Reel
Product Status Active
Capacitance 560 pF
Tolerance ±5%
Voltage - Rated 50V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Applications General Purpose
Mounting Type Surface Mount, MLCC
Package / Case 0402 (1005 Metric)
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Thickness (Max) 0.022" (0.56mm)
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 853192-04025C561JAT2A
Ultra Librarian 3D Model Ultra Librarian 04025C561JAT2A CAD Model

Description

The AVX Corp/Kyocera Corp 853192-04025C561JAT2A is a ceramic capacitor designed for general-purpose applications.

  • Capacitance: 560 pF
  • Tolerance: ±5%
  • Rated Voltage: 50V
  • Temperature Coefficient: X7R
  • Temperature Range: -55°C to 125°C
  • Type: Surface mount MLCC (Multilayer Ceramic Capacitor)
  • Package Size: 0402 (1005 Metric), measuring 0.039" L x 0.020" W (1.00mm x 0.50mm)
  • Packaging: Tape and reel
  • Standard Package: 10,000 pieces
