Same model may have multiple batches, images only for reference.

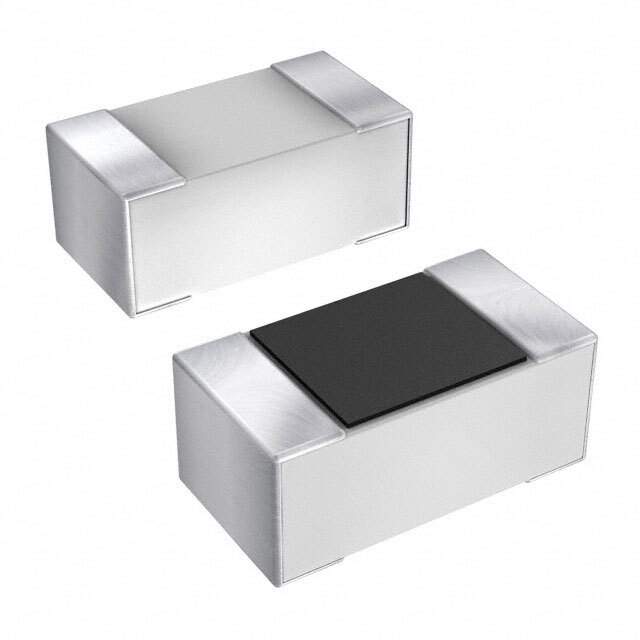

04023J5R6BBSTR Real Image
Same model may have multiple batches, images only for reference.

04023J5R6BBSTR

Part No 04023J5R6BBSTR
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Description CAP THIN FILM 5.6PF 25V 0402 / 5.6 pF Thin Film Capacitor 25 V 0402 (1005 Metric)
Datasheet
04023J5R6BBSTR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Thin Film Capacitors
Mfr KYOCERA AVX
Series Accu-P®
Package Tape & Reel
Capacitance 5.6 pF
Tolerance ±0.1pF
Voltage - Rated 25 V
Mounting SMD (SMT)
Package / Case 0402 (1005 Metric)
Temperature Range - Operating -55°C ~ 125°C
Features RF, High Q, Low Loss
Dimension 0.039" L x 0.022" W (1.00mm x 0.55mm)
Height - Seated (Max) 0.020" (0.50mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Other Names 478-4429-6,04023J5R6BBSTR/5K,04023J5R6BBSTR/500,04023J5R6BBSTR\\5K,478-4429-1,04023J5R6BBSTR-ND,478-4429-2
Standard Package 5,000
Win Source Part Number 1033615-04023J5R6BBSTR
Ultra Librarian 3D Model Ultra Librarian 04023J5R6BBSTR CAD Model

Description

The Accu-P® 5.6 pF thin film capacitor from Kyocera AVX is an SMD component that has a rated voltage of 25V and a tolerance of ±0.1pF. It is suitable for RF applications and operates within a temperature range of -55°C to 125°C.

  • Package: Tape and reel
  • Height: 0.020" (0.50mm)
  • Dimension: 0.039" L x 0.022" W (1.00mm x 0.55mm)
  • RoHS: Not compliant
