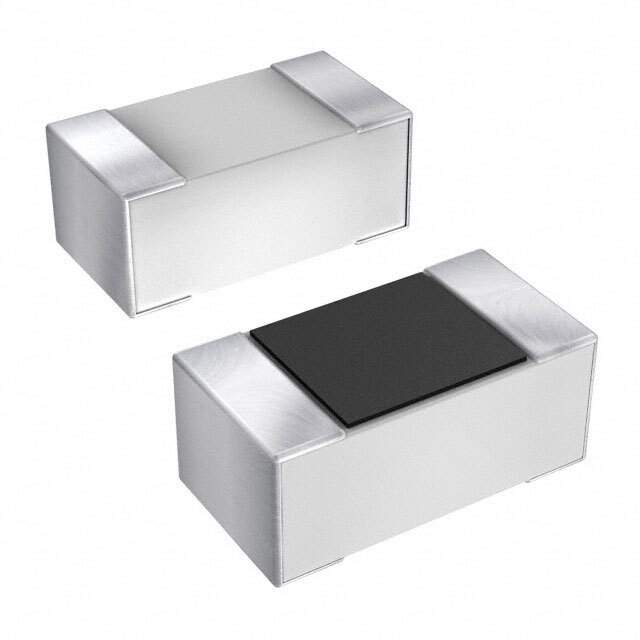

04023J1R5PBSTR Real Image
Same model may have multiple batches, images only for reference.

04023J1R5PBSTR

Part No 04023J1R5PBSTR
Manufacturer AVX Corp/Kyocera Corp
Catalog Thin Film Capacitors
Description CAP THIN FILM 1.5PF 25V 0402 / 1.5 pF Thin Film Capacitor 25 V 0402 (1005 Metric)
Datasheet
04023J1R5PBSTR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Thin Film Capacitors
Manufacturer KYOCERA AVX
Packaging Reel - TR
Capacitance 1.5 pF
Tolerance ±0.02pF
Voltage - Rated 25 V
Mounting Surface Mount
Case / Package 0402 (1005 Metric)
Temperature Range - Operating -55°C ~ 125°C
Features RF, High Q, Low Loss
Size / Dimension 0.039" L x 0.022" W (1.00mm x 0.55mm)
Height - Seated (Max) 0.020" (0.50mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.29.0040
Other Part Number 04023J1R5PBSTR-ND,478-12627-6,478-12627-1,478-12627-2
Standard Package 5,000
Win Source Part Number 1331445-04023J1R5PBSTR
Ultra Librarian 3D Model Ultra Librarian 04023J1R5PBSTR CAD Model

Description

The KYOCERA AVX thin film capacitor is a high-quality electronic component designed for use in RF applications.

  • Capacitance: 1.5pF
  • Tolerance: ±0.02pF
  • Voltage: 25V
  • Operating Temperature: -55°C to 125°C
  • Mounting Type: Surface Mountable
  • Package: 0402 (1005 Metric)
  • Size: 0.039" L x 0.022" W (1.00mm x 0.55mm)
  • Height: 0.020" (0.50mm)
  • Standard Package: 5,000
  • ROHS3 Compliant: Yes
  • REACH Status: Unaffected
