009176003863906 AVX Corp/Kyocera Corp – Price, Stock & Datasheet

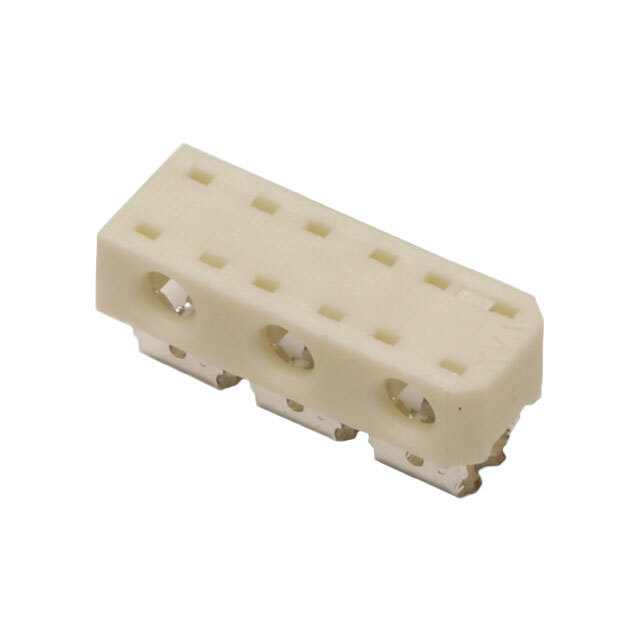

Same model may have multiple batches, images only for reference.

009176003863906

Part No 009176003863906
Manufacturer AVX Corp/Kyocera Corp
Catalog Rectangular Connectors
Description 3 Position Individual Wires Connector White IDC 24 AWG Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer KYOCERA AVX
Series 9176-800
Packaging Reel - TR
Connector Type Individual Wires
Number of Positions 3
Cable Pitch 0.126" (3.20mm)
Board-Side Pitch 0.126" (3.20mm)
Number of Rows 1
Mounting Type Surface Mount
Cable Termination IDC
Wire Gauge 24 AWG
Features Feed Through
Contact Finish Tin
Color White
Number of Positions Loaded All
Base Product Number 009176
RoHS Status ROHS3 Compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1478160-009176003863906
Ultra Librarian 3D Model Ultra Librarian 009176003863906 CAD Model
