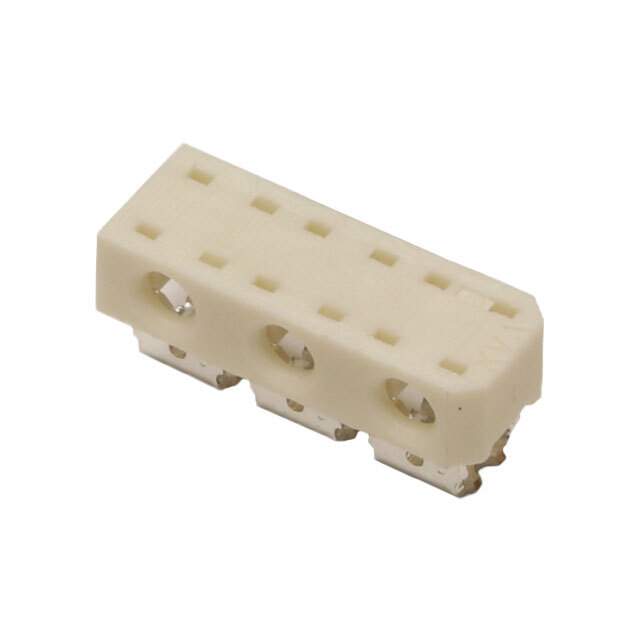

Same model may have multiple batches, images only for reference.

009176003853906

Get a Quote

Part No	009176003853906
Manufacturer	AVX Corp/Kyocera Corp
Catalog	Rectangular Connectors
Description	CONN WIRE IDC 3POS 22AWG SMD / 3 Position Individual Wires Connector White IDC 22 AWG Surface Mount
Datasheet	009176003853906 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Board In, Direct Wire to Board
Mfr	AVX Corp/Kyocera Corp
Series	9176-800
Package	Tape & Reel
Connector Type	Individual Wires
Number of Positions	3
Cable Pitch	0.126" (3.20mm)
Board-Side Pitch	0.126" (3.20mm)
Number of Rows	1
Row Spacing	-
Mounting Type	Surface Mount
Cable Termination	IDC
Wire Gauge	22 AWG
Features	Feed Through
Contact Finish	Tin
Contact Finish Thickness	-
Color	White
Number of Positions Loaded	All
Base Product Number	009176
Moisture Sensitivity Level (MSL)	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	1,700 pcs
Win Source Part Number	1380355-009176003853906
Ultra Librarian 3D Model	Ultra Librarian 009176003853906 CAD Model

Alternative Products

Description

The AVX Corp/Kyocera Corp 9176-800 series is a white individual wire connector with a feed-through feature.

Mounting Type: surface mount
Board-side Pitch: 0.126" (3.20mm)
Cable Pitch: 0.126" (3.20mm)
Positions Loaded: 3
Wire Gauge: 22 AWG
Contact Finish: tin
Package: tape & reel
Standard Package: 1,700 pieces
Category: connectors, interconnects
Application: board in, direct wire to board connections
REACH: unaffected
ECCN: EAR99
