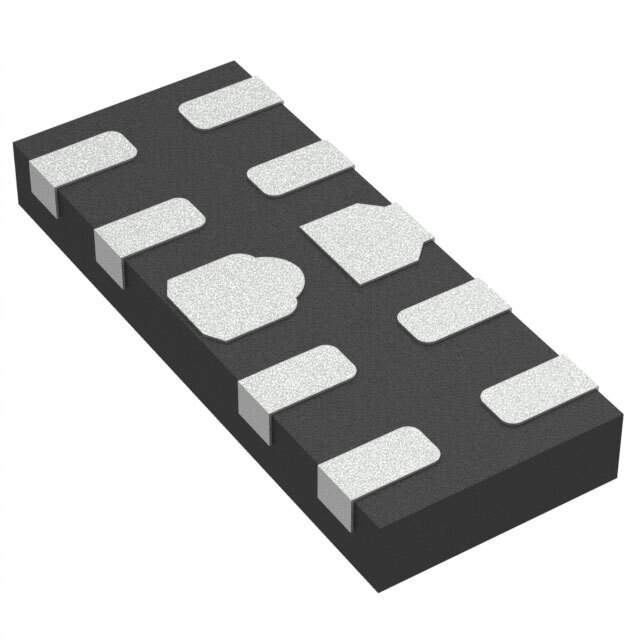

AOZ8S301UD4-03 Real Image1 AOZ8S301UD4-03 Real Image2
Same model may have multiple batches, images only for reference.
AOZ8S301UD4-03 Real Image1 AOZ8S301UD4-03 Real Image2
AOZ8S301UD4-03 Real Image1 AOZ8S301UD4-03 Real Image2
Same model may have multiple batches, images only for reference.

AOZ8S301UD4-03

Part No AOZ8S301UD4-03
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog TVS - Diodes
Description TVS 4CH 3.3V 0.28PH UNI 10DFN / 7V Clamp 16A Ipp Tvs Diode Surface Mount 10-DFN (2.5x1)
Datasheet
AOZ8S301UD4-03 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Transient Voltage Suppressors (TVS)>TVS Diodes
Mfr Alpha & Omega Semiconductor Inc.
Series -
Package Tape & Reel
Type Steering (Rail to Rail)
Unidirectional Channels 4
Voltage - Reverse Standoff (Typ) 3.3V (Max)
Voltage - Breakdown (Min) 5V
Voltage - Clamping (Max) @ Ipp 7V
Current - Peak Pulse (10/1000µs) 16A
Power - Peak Pulse -
Power Line Protection No
Applications HDMI, USB
Capacitance @ Frequency 0.28pF @ 1MHz
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case 10-UFDFN
Supplier Device Package 10-DFN (2.5x1)
Base Product Number AOZ8S301
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 3,000 pcs
Win Source Part Number 1381408-AOZ8S301UD4-03
Ultra Librarian 3D Model Ultra Librarian AOZ8S301UD4-03 CAD Model

Description

The TVS Diode with the Win Source Part Number 1381408-AOZ8S301UD4-03 is a high-quality transient voltage suppressor designed for circuit protection.

  • Suitable for Applications: HDMI, USB
  • Type: Steering
  • Package: Tape & Reel
  • Channels: 4 Unidirectional
  • Reverse Standoff Voltage (Maximum): 3.3V
  • Breakdown Voltage: 5V
  • Clamping Voltage @ Ipp: 7V
  • Capacitance: 0.28pF @ 1MHz
  • Peak Pulse Current: 16A (10/1000µs)
  • Mounting Type: Surface Mount
  • Package / Case: 10-UFDFN
  • Supplier Device Package: 10-DFN (2.5x1)
  • Temperature Range: -40°C to 125°C
  • ECCN: EAR99
  • HTSUS: 8541.10.0080
  • Manufacturer: Alpha & Omega Semiconductor Inc.
  • Standard Package: 3,000 pieces
  • Base Product Number: AOZ8S301
  • REACH Compliant: No
