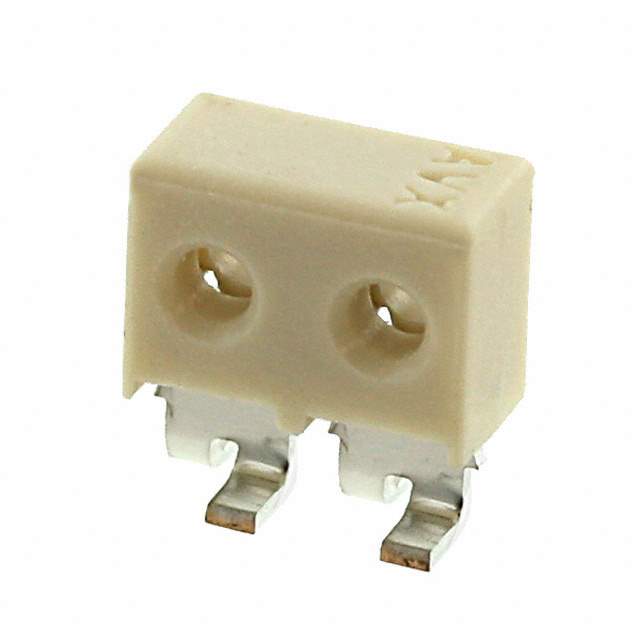

Same model may have multiple batches, images only for reference.

009175002701106

Name: 009175002701106
Brand: AVX Corp/Kyocera Corp
SKU: 1380354
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	009175002701106
Manufacturer	AVX Corp/Kyocera Corp
Catalog	Rectangular Connectors
Description	CONN WIRE IDC 2POS 28AWG SMD / 2 Position Individual Wires Connector White IDC 28 AWG, Stranded or Solid Surface Mount
Datasheet	009175002701106 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Board In, Direct Wire to Board
Mfr	AVX Corp/Kyocera Corp
Series	9175-700
Package	Tape & Reel
Connector Type	Individual Wires
Number of Positions	2
Cable Pitch	0.098" (2.50mm)
Board-Side Pitch	0.098" (2.50mm)
Number of Rows	1
Row Spacing	-
Mounting Type	Surface Mount
Cable Termination	IDC
Wire Gauge	28 AWG, Stranded or Solid
Features	Feed Through
Contact Finish	Tin
Contact Finish Thickness	-
Color	White
Number of Positions Loaded	All
Base Product Number	009175
Moisture Sensitivity Level (MSL)	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	1,000 pcs
Win Source Part Number	1380354-009175002701106
Ultra Librarian 3D Model	Ultra Librarian 009175002701106 CAD Model

Alternative Products

Description

The 009175002701106 is a rectangular connector from AVX Corp/Kyocera Corp.

Connector Type: board in, direct wire to board
Positions: 2
Color: white
Functionality: feed through
Wire Type: individual wires
Wire Gauge: 28 AWG stranded or solid
Mounting: surface mount
Cable Termination: IDC
Cable Pitch: 0.098" (2.50mm)
Board-side Pitch: 0.098" (2.50mm)
Package: tape & reel
Standard Package Quantity: 1,000 pcs
REACH: unaffected
ECCN: EAR99
MSL: 3 (168 Hours)
