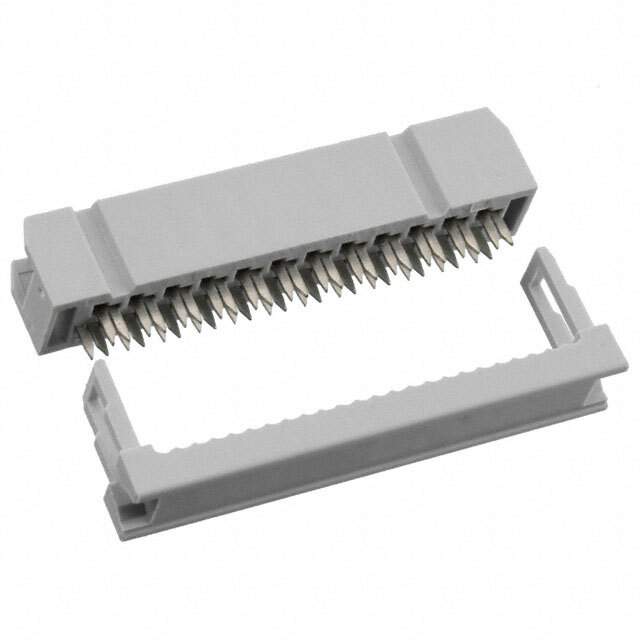

Same model may have multiple batches, images only for reference.

AWP 24-8240-T

Name: AWP 24-8240-T
Brand: Assmann WSW Components
SKU: 1351358
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	AWP 24-8240-T
Manufacturer	Assmann WSW Components
Catalog	Rectangular Connectors
Description	CONN SOCKET 24POS IDC GOLD / 24 Position Rectangular Socket Connector IDC Gold
Datasheet	AWP 24-8240-T Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Free Hanging, Panel Mount
Mfr	Assmann WSW Components
Package	Tray
Connector Type	Socket
Contact Type	Female Socket
Number of Positions	24
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Mounting Type	Free Hanging (In-Line)
Cable Termination	IDC
Wire Type	Ribbon Cable
Features	Feed Through
Contact Finish	Gold
Color	Gray
Base Product Number	AWP 24
Standard Package	96
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4051
Win Source Part Number	1351358-AWP 24-8240-T
Ultra Librarian 3D Model	Ultra Librarian AWP 24-8240-T CAD Model

Alternative Products

Description

This rectangular connector from Assmann WSW Components has 24 positions and a pitch of 0.100" (2.54mm).

Color: Gray
Features: Feed Through
Connector Type: Socket
Contact Type: Female Socket
Number of Positions: 24
Pitch: 0.100" (2.54mm)
Number of Rows: 2
Row Spacing: 0.100" (2.54mm)
Cable Termination: IDC
Wire Type: Ribbon Cable
Standard Package: 96
