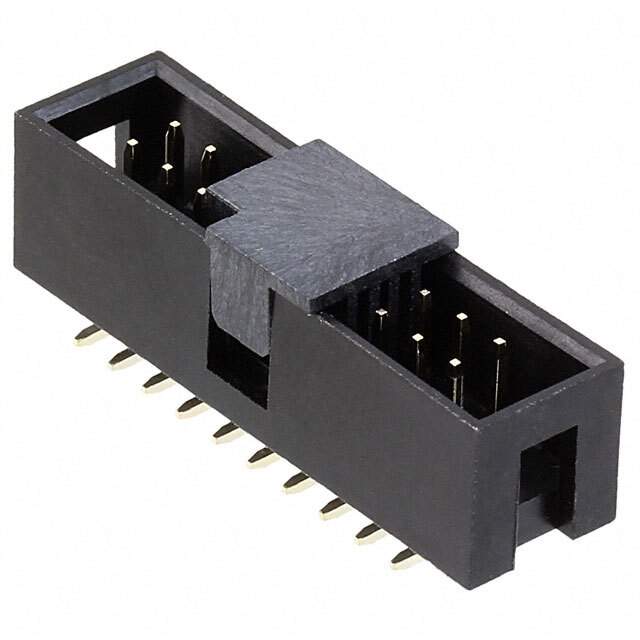

Same model may have multiple batches, images only for reference.

AWHW20-G-SMD-R

Get a Quote

Part No	AWHW20-G-SMD-R
Manufacturer	Assmann WSW Components
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 20POS 2.54MM / Connector Header Surface Mount 20 position 0.100" (2.54mm)
Datasheet	AWHW20-G-SMD-R Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Assmann WSW Components
Package	Tray
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	20
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.232" (5.90mm)
Insulation Height	0.354" (9.00mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Brass
Insulation Material	Polyamide (PA9T) , Nylon 9T, Glass Filled
Features	Keying Slot, Pick and Place
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Standard Package	160
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1349728-AWHW20-G-SMD-R
Ultra Librarian 3D Model	Ultra Librarian AWHW20-G-SMD-R CAD Model

Alternative Products

Description

The Assmann WSW Components AWHW20-G-SMD-R is a rectangular connector with 20 positions and a pitch of 0.100" (2.54mm).

Manufacturer: Assmann WSW Components
Connector Type: Header
Contact Type: Male Pin
Number of Positions: 20
Pitch: 0.100" (2.54mm)
Packaging: Tray
Termination: Solder
Fastening Type: Push-Pull
Contact Material: Brass
Insulation Material: Polyamide (PA9T), Nylon 9T, Glass Filled
Insulation Color: Black
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: Flash
Shrouding: Shrouded - 4 Wall
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.232" (5.90mm)
Contact Length - Post: Not Specified
Insulation Height: 0.354" (9.00mm)
Contact Shape: Square
Operating Temperature: -40°C ~ 105°C
Status: Obsolete
