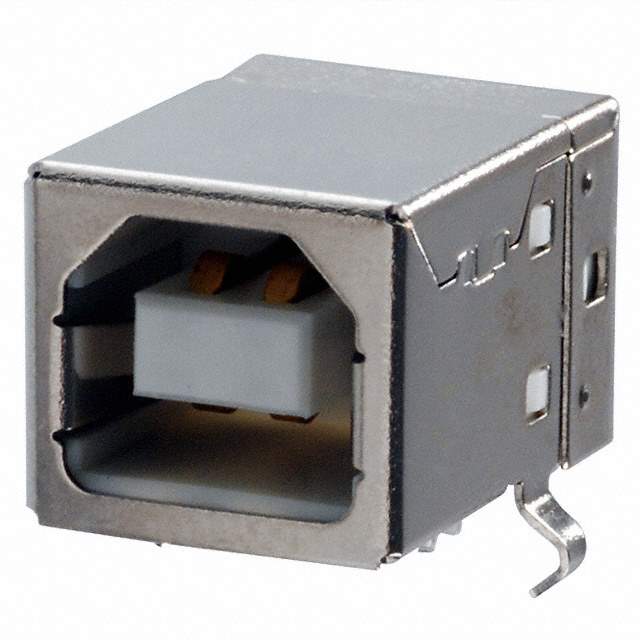

Same model may have multiple batches, images only for reference.

AU-Y1007-R

Name: AU-Y1007-R
Brand: Assmann WSW Components
SKU: 1285038
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	AU-Y1007-R
Manufacturer	Assmann WSW Components
Catalog	USB, DVI, HDMI Connectors
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>USB, DVI, HDMI Connectors
Mfr	Assmann WSW Components
Package	Tray
Product Status	Obsolete
Connector Type	USB-B (USB TYPE-B)
Number of Contacts	4
Gender	Receptacle
Specifications	USB 1.1
Mounting Type	Through Hole, Right Angle
Mounting Feature	Horizontal
Termination	Solder
Features	Board Lock
Temperature Range - Operating	-55°C ~ 85°C
Number of Ports	1
Current Rating (Amps)	1.5A
Mating Cycles	1500
Contact Finish	Gold
Shell/Shielding Material	Brass
Material Flammability Rating	UL94 V-0
Insulation Color	White
Other Names	Q2634092,AUY1007R,AE9925
Standard Package	100
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1285038-AU-Y1007-R
Ultra Librarian 3D Model	Ultra Librarian AU-Y1007-R CAD Model

Description

The Assmann WSW Components USB-B (USB TYPE-B) connector is a receptacle type connector with four contacts.

Specification: USB 1.1
Voltage Rating: -
Current Rating: 1.5A
Feature: Board Lock
Termination: Soldering
Contact Finish: Gold
Package: Tray
Insulation Color: White
Mounting Type: Through Hole, Right Angle
Mating Cycle: 1500
Operating Temperature: -55°C ~ 85°C
Status: Obsolete
