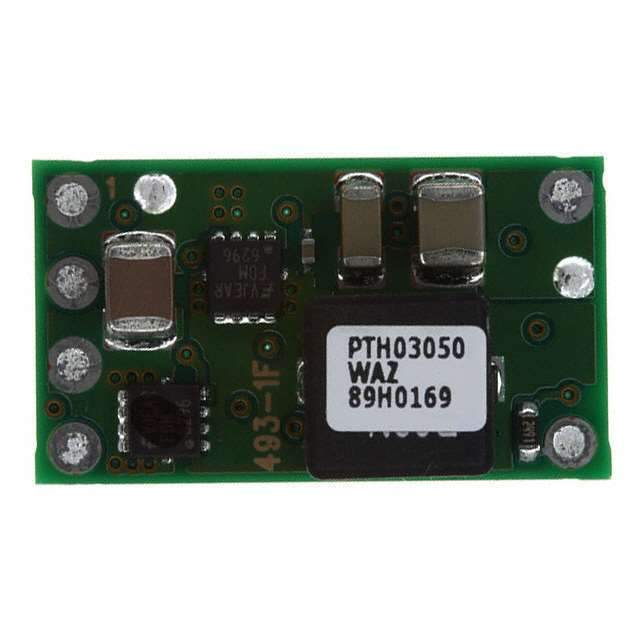

Same model may have multiple batches, images only for reference.

PTH03050WAZ

Name: PTH03050WAZ
Brand: Artesyn Embedded Technologies
SKU: 283791
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PTH03050WAZ
Manufacturer	Artesyn Embedded Technologies
Catalog	Power Supplies Board Mount DCDC Converters
Description	CONV DC/DC 3.3VIN ADJOUT 6A SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Artesyn Embedded Technologies
Standard Package	56
Category	Power Supplies - Board Mount
Family	DC DC Converters
Series	PTH03050W
Packaging	Tray
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	2.95V
Voltage - Input (Max)	3.65V
Voltage - Output 1	0.8 ~ 2.5 V
Current - Output (Max)	6A
Power (Watts) - Manufacture Series	15W
Applications	ITE (Commercial)
Features	Remote On/Off OCP OTP UVLO
Mounting Style	SMD/SMT
Package	6-SMD Module
Size / Dimension	0.87" L x 0.50" W x 0.34" H (22.1mm x 12.7mm x 8.6mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	94%
Power (Watts) - Max	15W
Catalog	PTH03050 Series
Win Source Part Number	062173-PTH03050WAZ
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian PTH03050WAZ CAD Model

Alternative Products

Description

The Artesyn Embedded Technologies PTH03050WAZ is a non-isolated PoL module that is ideal for power supplies - board mount applications.

Type: DC-DC converter
Series: PTH03050W series
Package: 6-SMD module
Operating Temperature Range: -40°C to 85°C
Features: Remote on/off, overcurrent protection (OCP), over temperature protection (OTP), and under voltage lockout (UVLO)
Maximum Output Current: 6A
Input Voltage Range: 2.95V to 3.65V
Output Voltage: 0.8V to 2.5V
Maximum Power Output: 15W
Efficiency: 94%
Market: Popular
