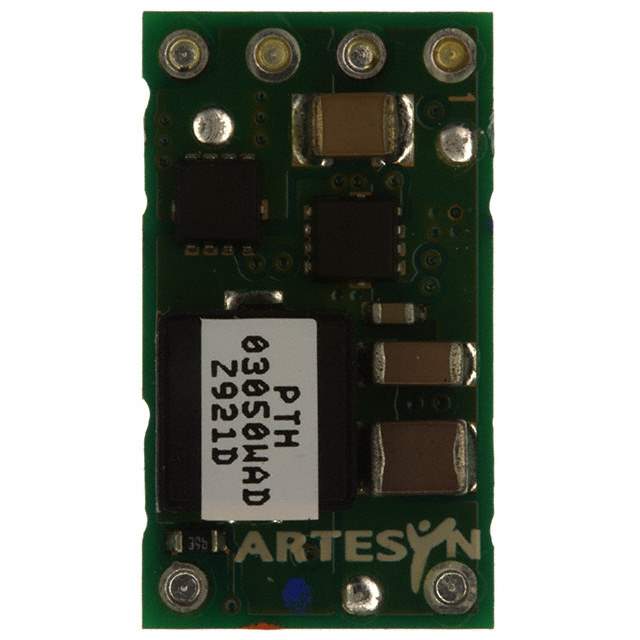

PTH03050WAD Real Image
Same model may have multiple batches, images only for reference.

PTH03050WAD

Part No PTH03050WAD
Manufacturer Artesyn Embedded Technologies
Catalog Power Supplies Board Mount DCDC Converters
Description CONV DC/DC 3.3VIN ADJOUT 6A
Datasheet
PTH03050WAD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Artesyn Embedded Technologies
Series PTH03050W
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 2.95V
Voltage - Input (Max) 3.65V
Voltage - Output 1 0.8 ~ 2.5 V
Current - Output (Max) 6A
Power (Watts) - Manufacture Series 15W
Applications ITE (Commercial)
Features Remote On/Off, SCP, UVLO
Mounting Style Through Hole
Package 6-DIP Module
Size / Dimension 0.87" L x 0.50" W x 0.34" H (22.1mm x 12.7mm x 8.6mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 94%
Power (Watts) - Max 15W
Win Source Part Number 026935-PTH03050WAD
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PTH03050WAD CAD Model

Description

The Artesyn Embedded Technologies PTH03050WAD is a non-isolated PoL module that is part of the DC DC converters family.

  • Maximum Output Current: 6A
  • Input Voltage Range: 2.95V to 3.65V
  • Operating Temperature Range: -40°C to 85°C
  • Features: Remote on/off, SCP, and UVLO
  • Package: 6-DIP module
  • Dimensions: 0.87 inches L x 0.50 inches W x 0.34 inches H (22.1mm x 12.7mm x 8.6mm)
  • Commonly Used In: ITE (Commercial) applications
  • Power Output: 15W
  • Efficiency: 94%
  • Supply and Demand Status: Balanced
