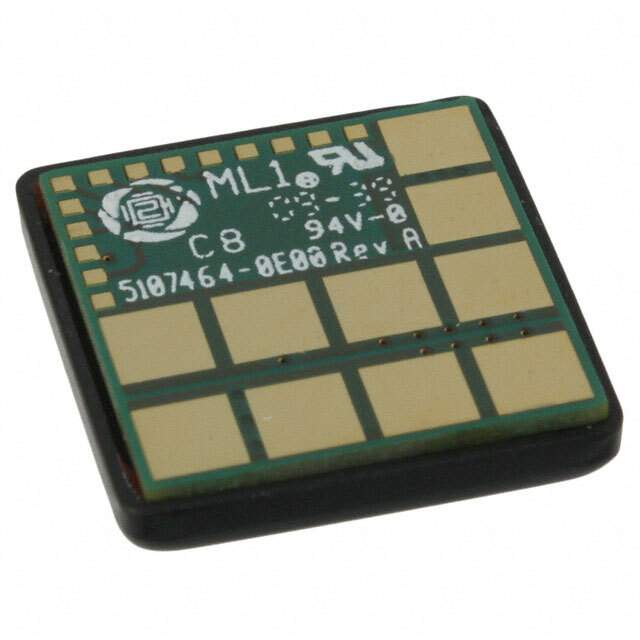

Same model may have multiple batches, images only for reference.

LGA03C-00SADJJ

Name: LGA03C-00SADJJ
Brand: Artesyn Embedded Technologies
SKU: 179787
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	LGA03C-00SADJJ
Manufacturer	Artesyn Embedded Technologies
Catalog	Power Supplies Board Mount DCDC Converters
Description	CONVERTER DC/DC 3A ADJ OUT
Datasheet	LGA03C-00SADJJ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount
Family	DC DC Converters
Manufacturer	Artesyn Embedded Technologies
Series	LGAC
Packaging	Reel(TR)
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	3V
Voltage - Input (Max)	14V
Voltage - Output 1	0.59 ~ 5.1 V
Current - Output (Max)	3A
Power (Watts) - Manufacture Series	15W
Applications	ITE (Commercial)
Features	Remote On/Off, UVLO
Mounting Style	SMD/SMT
Package	24-LGA
Size / Dimension	0.65" L x 0.65" W x 0.13" H (16.5mm x 16.5mm x 3.3mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	92%
Power (Watts) - Max	15W
Win Source Part Number	113410-LGA03C-00SADJJ
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian LGA03C-00SADJJ CAD Model

Alternative Products

Description

The Artesyn Embedded Technologies LGAC series is a non-isolated PoL module that comes with a remote on/off feature and UVLO. It is ideal for ITE (Commercial) applications and has a voltage input range of 3V to 14V.

Application: ITE (Commercial)
Input Voltage: 3V to 14V
Output Current (Maximum): 3A
Efficiency: 92%
Package Size: 0.65" L x 0.65" W x 0.13" H (16.5mm x 16.5mm x 3.3mm)
Package: 24-LGA
Power Output: 15W
Output Voltage Range: 0.59 ~ 5.1 V
Mounting: SMD/SMT
Operating Temperature: -40°C ~ 85°C
