Same model may have multiple batches, images only for reference.

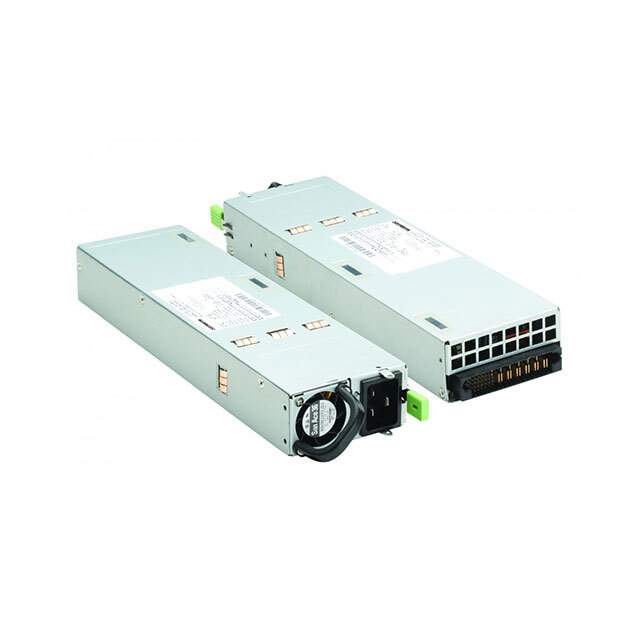

DS1200DC-3-002 Real Image
Same model may have multiple batches, images only for reference.

DS1200DC-3-002

Part No DS1200DC-3-002
Manufacturer Artesyn Embedded Technologies
Catalog Board Mount AC DC Converters
Description 48VDC INPUT; 12V OUTPUT, 1200W 1 / DC/DC Power Supply Single-OUT 12V 100A 1200W
Datasheet
DS1200DC-3-002 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - External/Internal (Off-Board)
Manufacturer Artesyn Embedded Technologies
Series DS1200DC
Type Front End
Number of Outputs 2
Voltage - Input 40 ~ 72 VAC
Voltage - Output 1 12V
Voltage - Output 2 5V
Current - Output (Maximum) 100A, 4A
Power (Watts) 1200W
Applications ITE (Commercial)
Efficiency 85%
Operating Temperature Range -10°C ~ 55°C
Features I2C Interface, Standby Output
Mounting Rack Mount
Dimension 11.00" L x 3.20" W x 1.55" H (279.4mm x 81.3mm x 39.3mm)
Minimum Load Required No
Approvals CB, CCC, cUL, NEMKO, UL
Win Source Part Number 772904-DS1200DC-3-002
Popularity Medium
Supply and Demand Status Balance
Family Name DS1200DC-3
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian DS1200DC-3-002 CAD Model

Description

The Artesyn Embedded Technologies DS1200DC-3-002 is a front-end module that has a power output of 1200W.

  • Input Voltage: 40 ~ 72 VAC
  • Interface: I2C
  • Features: Standby output
  • Package: Rack mount
  • Output Voltage: 12V, 5V
  • Current Output: 100A, 4A
  • Operating Temperature Range: -10°C to 55°C
  • Applications: ITE (Commercial)
  • Efficiency: 85%
  • Supply and Demand Status: Balanced
  • Estimated EOL Date: 2025
