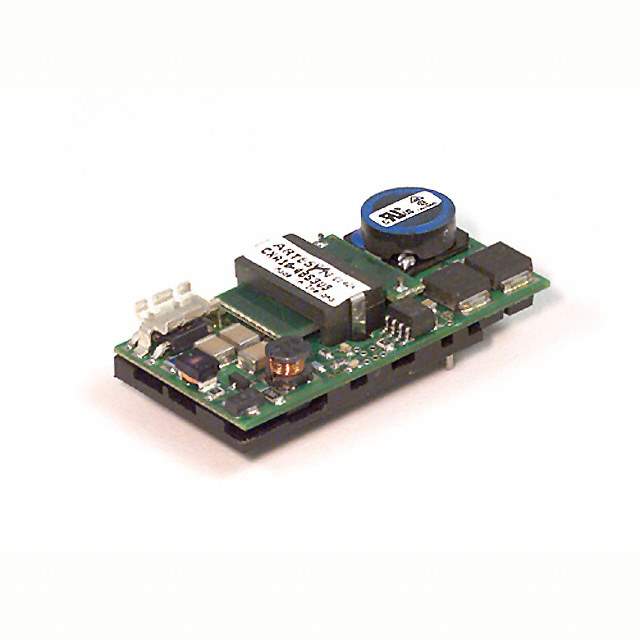

Same model may have multiple batches, images only for reference.

CXA10-48S3V3

Name: CXA10-48S3V3
Brand: Artesyn Embedded Technologies
SKU: 1335129
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CXA10-48S3V3
Manufacturer	Artesyn Embedded Technologies
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 3.3V 10W / Isolated Module DC DC Converter 1 Output 3.3V 2.4A 18V - 75V Input
Datasheet	CXA10-48S3V3 Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Artesyn Embedded Power
Packaging	Bulk
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Voltage - Output 1	3.3V
Current - Output (Max)	2.4A
Power (Watts)	10 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	OVP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 70°C
Efficiency	78%
Mounting	Through Hole
Case / Package	6-DIP Module
Size / Dimension	2.00" L x 1.00" W x 0.39" H (50.8mm x 25.4mm x 10.0mm)
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	393-1018
Standard Package	50
Win Source Part Number	1335129-CXA10-48S3V3
Ultra Librarian 3D Model	Ultra Librarian CXA10-48S3V3 CAD Model

Alternative Products

Description

The CXA10-48S3V3 is a 10W Isolated Module DC-DC Converter with Over Voltage Protection (OVP), Short Circuit Protection (SCP) and Under Voltage Lockout (UVLO) features.

Features: OVP, SCP and UVLO
Package: Bulk
Package Quantity: 50
Outputs: One output
Maximum Current Output: 2.4A
Output Voltage: 3.3V
Input Voltage Range: 18V and 75V
Voltage Isolation: 1.5 kV
Efficiency: 78%
Application: ITE commercial applications
Mounting: Through Hole
Package/Case Size: 6-DIP Module
Operating Temperature: -40°C to 70°C
