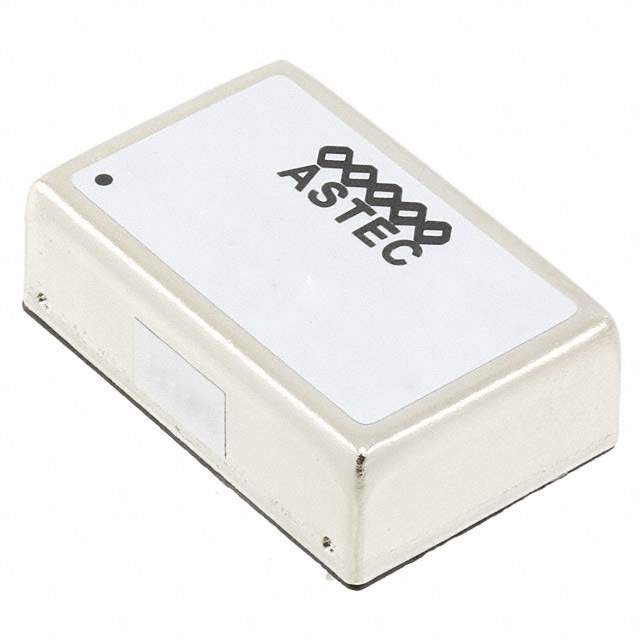

Same model may have multiple batches, images only for reference.

ASA03F48-L

Name: ASA03F48-L
Brand: Artesyn Embedded Technologies
SKU: 1381455
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ASA03F48-L
Manufacturer	Artesyn Embedded Technologies
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 3.3V 10W / Isolated Module DC DC Converter 1 Output 3.3V 3A 36V - 75V Input
Datasheet	ASA03F48-L Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Artesyn Embedded Technologies
Series	ASA (10W)
Package	Tube
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	3.3V
Voltage - Output 2	-
Voltage - Output 3	-
Current - Output (Max)	3A
Power (Watts)	10 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 60°C
Efficiency	83%
Mounting Type	Through Hole
Package / Case	8-DIP Module
Size / Dimension	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Standard Package	200 pcs
Win Source Part Number	1381455-ASA03F48-L
Ultra Librarian 3D Model	Ultra Librarian ASA03F48-L CAD Model

Alternative Products

Description

The ASA03F48-L is a 10W isolated module DC-DC converter designed for ITE (Commercial) applications. ASA03F48-L from Artesyn Embedded Technologies.

Protection Features: Short Circuit Protection (SCP)
Size: 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Voltage Isolation: 1.5 kV
Number of Outputs: 1
Output Current (Max): 3A
Input Voltage: 36V to 75V
Output Voltage: 3.3V
Efficiency: 83%
Mounting Type: Through Hole
Package: 8-DIP Module
Operating Temperature: -40°C to 60°C
Obsolete: Yes
Standard Package: 200 pieces
