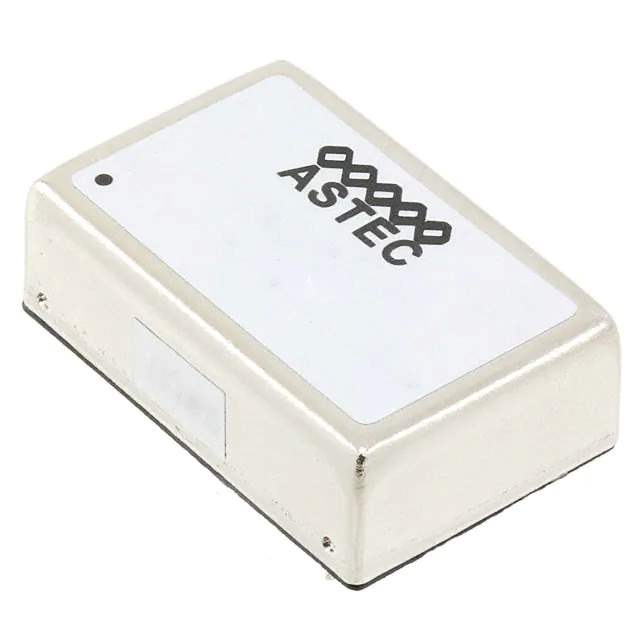

Same model may have multiple batches, images only for reference.

ASA02A24-L

Name: ASA02A24-L
Brand: Artesyn Embedded Technologies
SKU: 564916
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ASA02A24-L
Manufacturer	Artesyn Embedded Technologies
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 10W / Isolated Module DC DC Converter 1 Output 5V 2A 18V - 36V Input
Datasheet	ASA02A24-L Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Artesyn Embedded Technologies
Series	ASA (10W)
Package	Tube
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	5V
Current - Output (Max)	2A
Power (Watts)	10 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 60°C
Efficiency	83%
Mounting Type	Through Hole
Package / Case	8-DIP Module
Size / Dimension	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Standard Package	200 pcs
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	564916-ASA02A24-L
Ultra Librarian 3D Model	Ultra Librarian ASA02A24-L CAD Model

Alternative Products

Description

The ASA (10W) series DC-DC converter, part number 564916-ASA02A24-L, is a reliable and efficient power supply solution for various electronic applications.

Power Output: 10W
Output Voltage: 5V (single)
Protection: Short circuit protection (SCP)
Input Voltage Range: 18V to 36V
Efficiency: 83%
Mounting Type: Through-hole
Size: 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Application: ITE (Commercial)
Package: 200 pcs
Manufacturer: Artesyn Embedded Technologies
