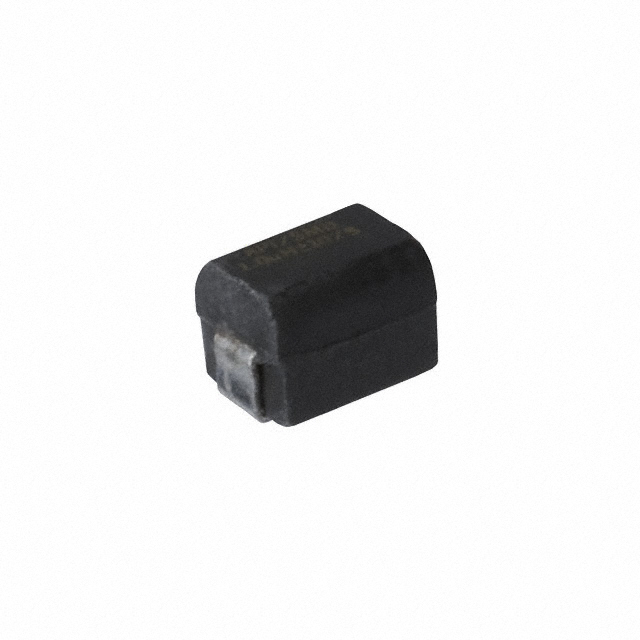

S1812-224K

Name: S1812-224K
Brand: API Delevan Inc.
SKU: 772796
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	S1812-224K
Manufacturer	API Delevan Inc.
Catalog	Fixed Inductors
Description	FIXED IND 220UH 149MA 9 OHM SMD / Inductor RF Shielded Wirewound 220uH 10% 790KHz 40Q-Factor Ferrite 0.149A 9Ohm DCR 1812 T/R
Datasheet	S1812-224K Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	API Delevan Inc.
Series	S1812
Packaging	Reel package
Material - Core	Ferrite
Inductance	220μH
Tolerance	±10%
Current Rating	149mA
Shielding	Shielded
DC Resistance (DCR)	9 Ohm Max
Q @ Freq	40 @ 790kHz
Frequency - Self Resonant	4.2MHz
Operating Temperature Range	-55°C ~ 125°C
Test Frequency	790kHz
Mounting	SMD
Package	1812 (4532 Metric)
Manufacturer Package	1812
Dimension	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Maximum)	0.134" (3.40mm)
Win Source Part Number	772796-S1812-224K
Popularity	Medium
Supply and Demand Status	Balance
Family Name	S1812
Introduction Date	July 27, 2001
ECCN	EAR99
Country of Origin	United States of America
Estimated EOL Date	2025
Ultra Librarian 3D Model	Ultra Librarian S1812-224K CAD Model

Alternative Products

Description

API Delevan Inc. presents the S1812 series shielded inductor, a ferrite core component with 220μH inductance and ±10% tolerance.

Mounting Type: SMD (SMT)
Maximum DC Resistance (DCR): 9 Ohm
Q @ Freq: 40 @ 790kHz
Operating Temperature Range: -55°C ~ 125°C
Frequency Self-Resonant: 4.2MHz
Package Type: 1812 (4532 Metric)
Packaging: Reel
Current Rating: 149mA
Category: Inductors, coils, chokes
Alternative Parts: PE-1812FD224JTG, ISC-1812220uH±5%, ISC-1812220uH±3%, SMRF1812-223JLF
Introduction Date: July 27, 2001
Estimated EOL Date: 2025
Supply and Demand Status: Balanced
