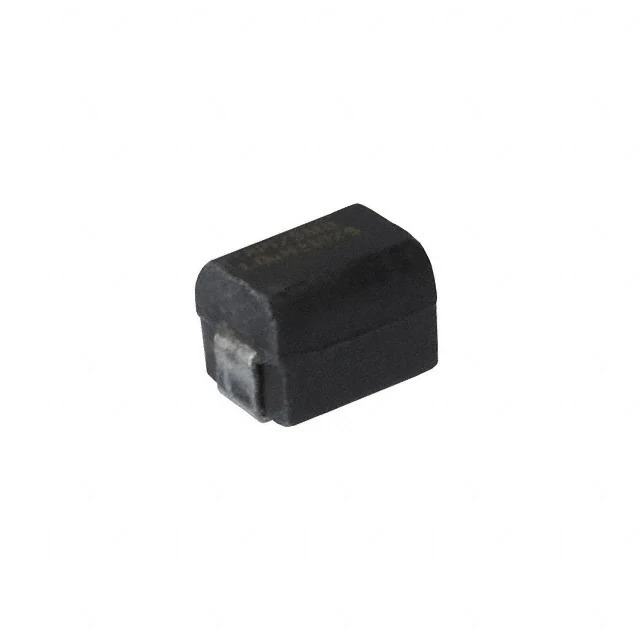

Same model may have multiple batches, images only for reference.

P1812-562K

Name: P1812-562K
Brand: API Delevan Inc.
SKU: 1379407
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	P1812-562K
Manufacturer	API Delevan Inc.
Catalog	Fixed Inductors
Description	FIXED IND 5.6UH 650MA 437MOHM SM
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	API Delevan Inc.
Series	P1812
Package	Tape & Reel
Product Status	Active
Type	-
Material - Core	Ferrite
Inductance	5.6 µH
Tolerance	±10%
Current Rating (Amps)	650 mA
Current - Saturation (Isat)	1.06A
Shielding	Unshielded
DC Resistance (DCR)	437mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	1 kHz
Mounting Type	Surface Mount
Package / Case	1812 (4532 Metric)
Supplier Device Package	1812
Size / Dimension	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max)	0.134" (3.40mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1379407-P1812-562K
Ultra Librarian 3D Model	Ultra Librarian P1812-562K CAD Model

Alternative Products

Description

The API Delevan Inc. P1812-562K is a fixed inductor in the 1812 (4532 Metric) package from API Delevan Inc.

Size: 0.177" L x 0.126" W (4.50mm x 3.20mm)
Seated Height: 0.134" (3.40mm)
Inductance: 5.6 μH
Current Rating: 650 mA
Core Material: Ferrite
Shielding: Unshielded
DC Resistance (DCR): 437mOhm Max
Tolerance: ±10%
Operating Temperature: -55°C to 125°C
Mounting Type: Surface Mount
Packaging: Tape and Reel
