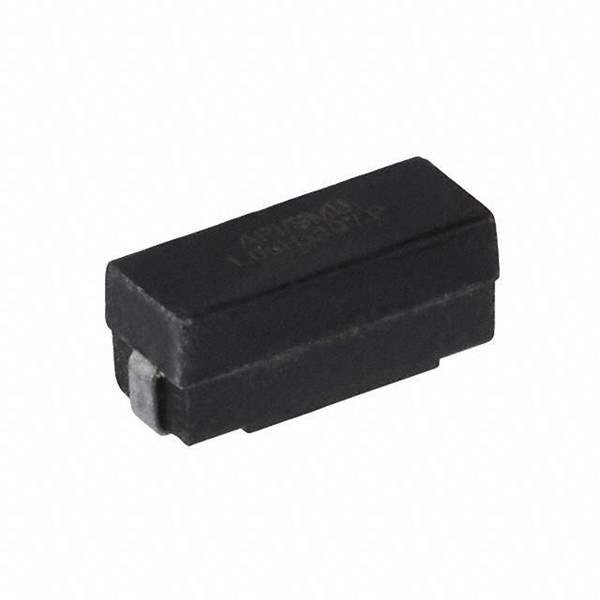

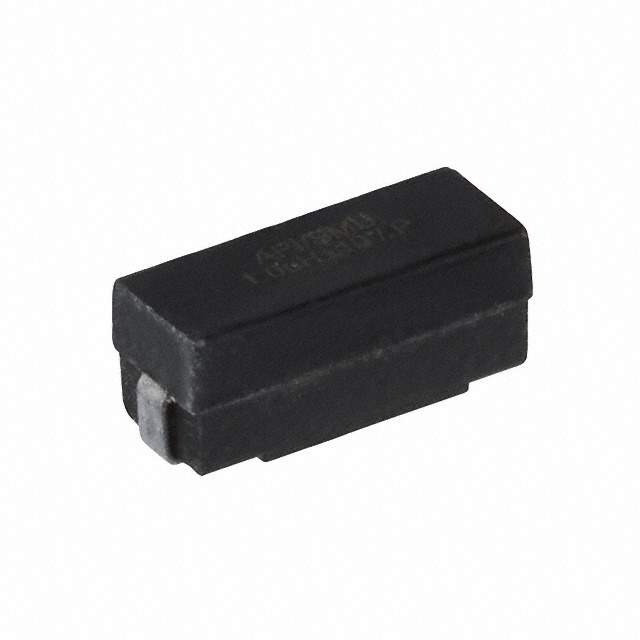

Same model may have multiple batches, images only for reference.

P1330-563K

Name: P1330-563K
Brand: API Delevan Inc.
SKU: 265483
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	P1330-563K
Manufacturer	API Delevan Inc.
Catalog	Fixed Inductors
Description	FIXED IND 56UH 442MA 900 MOHM
Datasheet	P1330-563K Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	API Delevan Inc.
Packaging	Reel - TR
Status	Active
Material - Core	Ferrite
Inductance	56μH
Tolerance	±10%
Current Rating	442mA
Current - Saturation	216mA
DC Resistance (DCR)	900 mOhm Max
Temperature Range - Operating	-55°C to 125°C
Frequency - Test	1kHz
Mounting	SMD (SMT)
Height - Seated (Max)	0.145" (3.68mm)
Win Source Part Number	209552-P1330-563K
Popularity	Medium
Supply and Demand Status	Sufficient
Ultra Librarian 3D Model	Ultra Librarian P1330-563K CAD Model

Alternative Products

Description

This API Delevan Inc. inductor with a Win Source Part Number of 209552-P1330-563K is a ferrite core inductor with an inductance of 56μH and a current rating of 442mA.

Inductance: 56μH
Current Rating: 442mA
Height: 0.145" (3.68mm)
Tolerance: ±10%
DC Resistance (DCR): 900 mOhm Max
Current Saturation: 216mA
Temperature Range: -55°C to 125°C
Mounting: SMD (SMT) technology
Commonly Used In: Various applications such as inductors, coils, and chokes.
