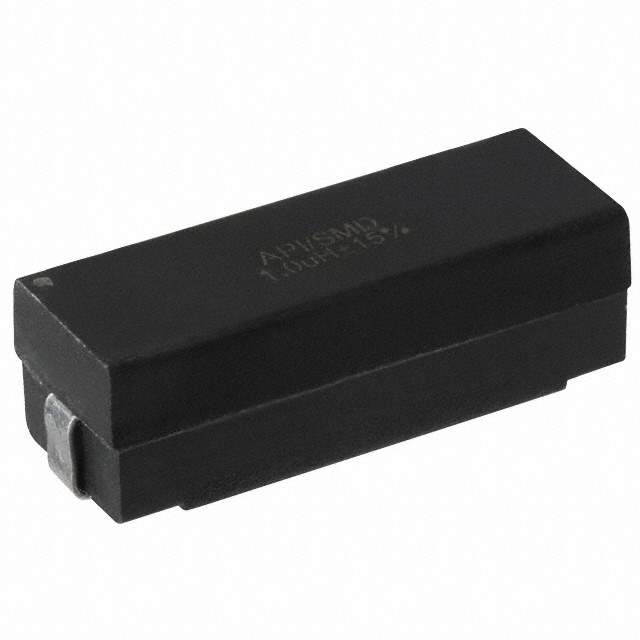

Same model may have multiple batches, images only for reference.

8532-32L

Name: 8532-32L
Brand: API Delevan Inc.
SKU: 766338
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	8532-32L
Manufacturer	API Delevan Inc.
Catalog	Fixed Inductors
Description	FIXED IND 390UH 680MA 770 MOHM
Datasheet	8532-32L Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	API Delevan Inc.
Series	8532
Packaging	Reel package
Material - Core	Ferrite
Inductance	390μH
Tolerance	±15%
Current Rating	680mA
Current - Saturation	320mA
Shielding	Unshielded
DC Resistance (DCR)	770 mOhm Max
Operating Temperature Range	-55°C ~ 125°C
Test Frequency	1kHz
Mounting	SMD
Package	Nonstandard
Dimension	0.860" L x 0.320" W (21.84mm x 8.12mm)
Height - Seated (Maximum)	0.286" (7.26mm)
Win Source Part Number	766338-8532-32L
Popularity	Medium
Supply and Demand Status	Limited
Family Name	Taxonomy Path
Introduction Date	September 10, 2007
ECCN	EAR99
Country of Origin	United States of America
Estimated EOL Date	2026
Ultra Librarian 3D Model	Ultra Librarian 8532-32L CAD Model

Alternative Products

Description

The API Delevan Inc. 704713 is a ferrite core inductor from API Delevan Inc.

Current Rating: 680mA
Inductance: 390μH
Tolerance: ±15%
DC Resistance (DCR): 770 mOhm max
Height: 0.286" (7.26mm)
Mounting: SMD
Series: Inductors, Coils, Chokes
Temperature Range: -55°C to 125°C
Supply and Demand Status: Limited
Estimated EOL Date: 2026
