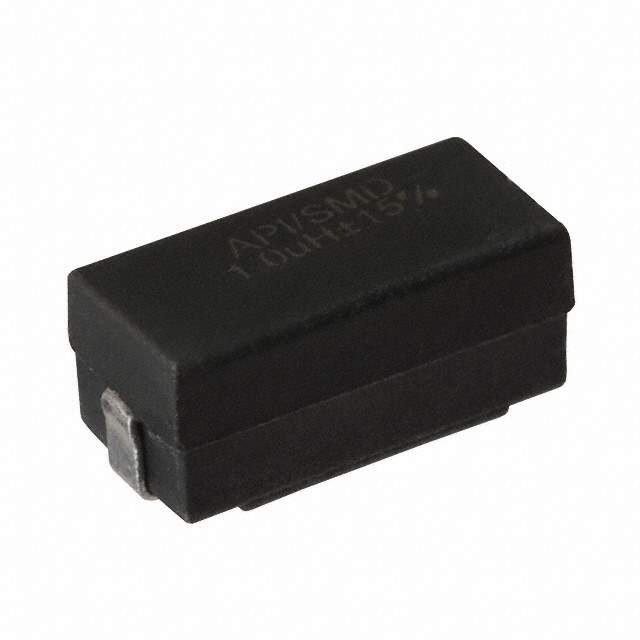

Same model may have multiple batches, images only for reference.

4922R-05L

Name: 4922R-05L
Brand: API Delevan Inc.
SKU: 546131
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	4922R-05L
Manufacturer	API Delevan Inc.
Catalog	Fixed Inductors
Description	Surface Mount High Current Power Inductors
Datasheet	4922R-05L Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	API Delevan Inc.
Series	4922R
Packaging	Reel - TR
Type	Wirewound
Material - Core	Ferrite
Inductance	2.2μH
Tolerance	±15%
Current Rating	3.7A
Current - Saturation	3.7A
Shielding	Unshielded
DC Resistance (DCR)	29 mOhm Max
Operating Temperature Range	-55°C ~ 125°C
Test Frequency	1kHz
Mounting	SMD
Package	Nonstandard
Size	0.505" L x 0.240" W (12.82mm x 6.09mm)
Height - Seated (Maximum)	0.230" (5.84mm)
Win Source Part Number	1128819-4922R-05L
Manufacturer Homepage	www.delevan.com
Popularity	Medium
Supply and Demand Status	Limited
Family Name	4922R
Introduction Date	August 31, 2004
ECCN	EAR99
Ultra Librarian 3D Model	Ultra Librarian 4922R-05L CAD Model

Alternative Products

Description

The API Delevan Inc. 4922R series wirewound inductor is a nonstandard package component that is shielded and unshielded.

Inductance: 2.2μH
Tolerance: ±15%
DC Resistance: 29 mOhm Max
Operating Temperature Range: -55°C to 125°C
Current Rating: 3.7A
Material: Ferrite
Size: 0.505" L x 0.240" W (12.82mm x 6.09mm)
Mounting: SMD
Current Saturation: 3.7A
