Same model may have multiple batches, images only for reference.

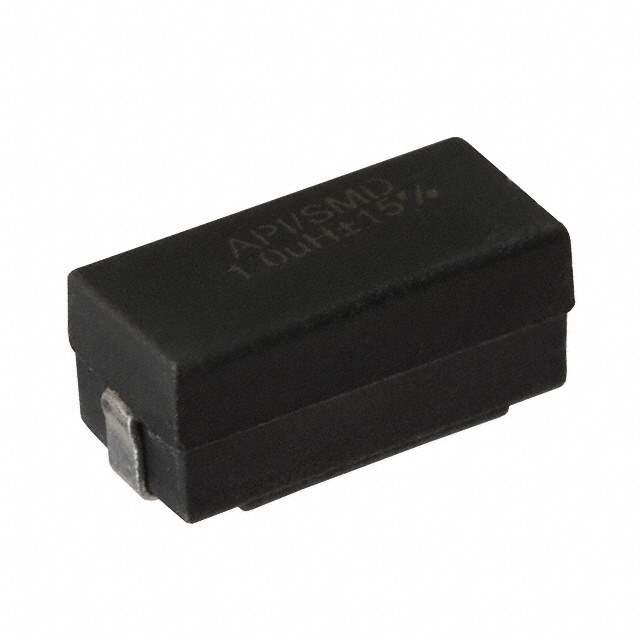

4922-13L Real Image
Same model may have multiple batches, images only for reference.

4922-13L

Part No 4922-13L
Manufacturer API Delevan Inc.
Catalog Fixed Inductors
Description FIXED IND 10UH 2.36A 71 MOHM SMD
Datasheet
4922-13L Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer API Delevan Inc.
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 10μH
Tolerance ±15%
Current Rating 2.36A
Current - Saturation 2.36A
DC Resistance (DCR) 71 mOhm Max
Temperature Range - Operating -55°C to 125°C
Frequency - Test 1kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.230" (5.84mm)
Win Source Part Number 1005700-4922-13L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 4922-13L CAD Model

Description

The 1005700-4922-13L is a wirewound inductor with a surface mount device (SMD) package.

  • Inductance: 10µH
  • Tolerance: ±15%
  • Core Material: ferrite
  • DCR (Max): 71 mOhm
  • Height: 0.230" (5.84mm)
  • Current Rating: 2.36A
  • Inductance Frequency: 1kHz
