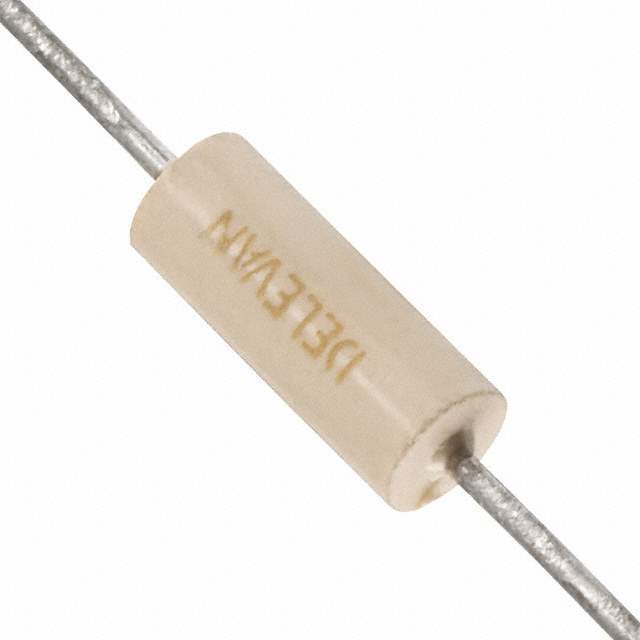

1025-86K Delevan
Same model may have multiple batches, images only for reference.

1025-86K

Part No 1025-86K
Manufacturer API Delevan Inc.
Catalog Fixed Inductors
Description FIXED IND 560UH 35MA 46 OHM TH
Datasheet
1025-86K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Delevan
Category Inductors, Coils, Chokes > Fixed Inductors
Part Status Active
Material - Core Ferrite
Inductance 560 µH
Tolerance ±10%
Current Rating (Amps) 35 mA
Shielding Unshielded
DC Resistance (DCR) 46Ohm Max
Q @ Freq 30 @ 790kHz
Frequency - Self Resonant 5MHz
Ultra Librarian 3D Model Ultra Librarian 1025-86K CAD Model

Description

560 µH Unshielded Inductor 35 mA 46Ohm Max Axial
