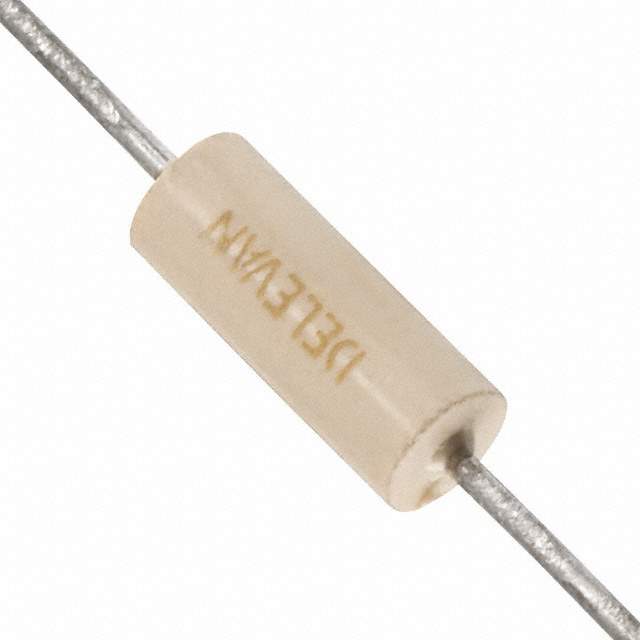

1025-52K Real Image
Same model may have multiple batches, images only for reference.

1025-52K

Part No 1025-52K
Manufacturer API Delevan Inc.
Catalog Fixed Inductors
Description FIXED IND 22UH 144MA 3.3 OHM TH / 22 µH Unshielded Inductor 144 mA 3.3Ohm Max Axial
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr API Delevan Inc.
Series Military, MIL-PRF-M15305, MS75084
Package Tape & Reel (TR),Cut Tape (CT)
Material - Core Iron
Inductance 22 µH
Tolerance ±10%
Current Rating (Amps) 144 mA
Shielding Unshielded
DC Resistance (DCR) 3.3Ohm Max
Q @ Freq 50 @ 2.5MHz
Frequency - Self Resonant 25MHz
Temperature Range - Operating -55°C ~ 105°C
Inductance Frequency - Test 2.5 MHz
Mounting Type Through Hole
Package / Case Axial
Dimension 0.095" Dia x 0.250" L (2.41mm x 6.35mm)
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names DN2552INACTIVE,1134-1076-1,DN2552,1025-52K-1000 TR,1134-1076,1134-1076-2,1134-1076-2-MIL,1134-1076-MIL,DN2552-ND,1134-1076-1-MIL,102552K
Standard Package 1,000
Win Source Part Number 1200104-1025-52K
Ultra Librarian 3D Model Ultra Librarian 1025-52K CAD Model

Description

The 1200104-1025-52K is a fixed inductor with an axial package.

  • Package: Axial
  • Shielding: Unshielded
  • Inductance: 22 µH
  • Tolerance: ±10%
  • Core Material: Iron
  • Maximum DC Resistance (DCR): 3.3Ohm
  • Mounting Type: Through Hole
  • Dimension: 0.095" Dia x 0.250" L (2.41mm x 6.35mm)
  • Current Rating: 144mA
  • Inductance Frequency: 2.5 MHz
  • Application: Military Electronic Devices
