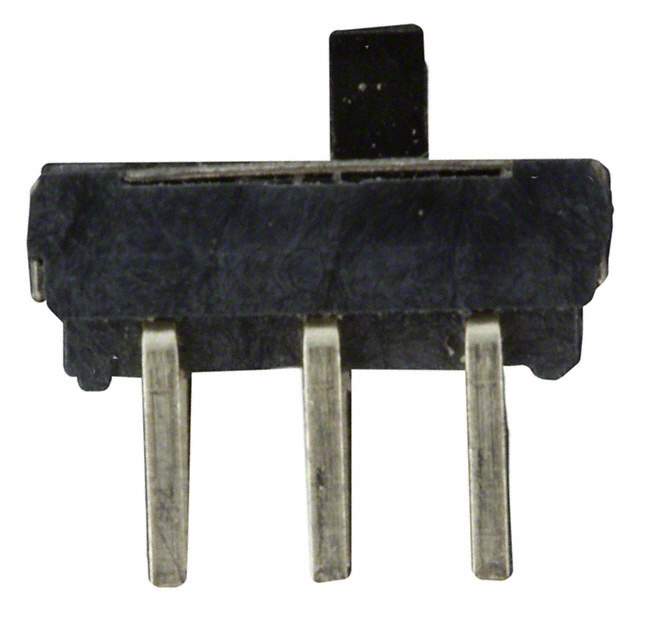

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Apem Inc.
Standard Package 100
Category Switches
Family Slide Switches
Series MS
Packaging Bulk
Circuit DPDT
Contact Timing Not Specified
Switch Function On-On
Current Rating 300mA (DC)
Voltage Rating - DC 6V
Actuator Type Standard
Actuator Length 2.00mm
Contact Finish Silver
Mounting Style Through Hole
Termination Style PC Pin
Actuator Material Thermoplastic
Switch Travel 2.00mm
Operating Temperature Range -10°C ~ 60°C
Electrical Life 10000 Cycles
Catalog MS Series
Win Source Part Number 045017-MS22
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MS22 CAD Model

Description

The Apem Inc. MS Series Slide Switch is a high-performance electronic component designed for various applications.

  • Package: Bulk
  • Termination Style: PC Pin
  • Mounting Style: Through Hole
  • Contact Finish: Silver
  • Current Rating: 300mA (DC)
  • Voltage Rating: 6V (DC)
  • Actuator Material: Thermoplastic
  • Circuit: DPDT
  • Switch Function: On-On
  • Actuator Type: Standard
  • Actuator Length: 2.00mm
  • Electrical Life: 10000 Cycles

This electronic component is popular and has a limited supply and demand status in the market.
