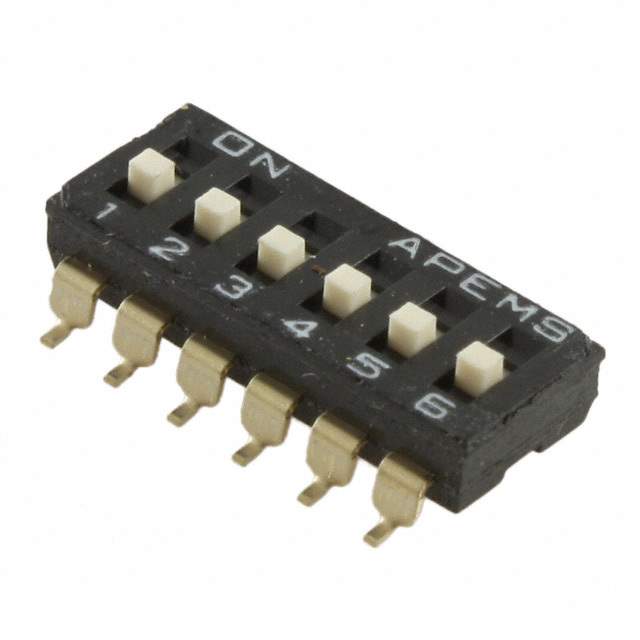

DM06 Real Image
Same model may have multiple batches, images only for reference.

DM06

Part No DM06
Manufacturer Apem Inc.
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V / Dip Switch SPST 6 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr APEM Inc.
Series DM
Package Tube
Circuit SPST
Number of Positions 6
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.173" (4.40mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -20°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS), Glass Filled
Length 0.637" (16.18mm)
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Standard Package 28
Win Source Part Number 1055609-DM06
Ultra Librarian 3D Model Ultra Librarian DM06 CAD Model

Description

The Apem Inc. DM series DIP switch is a SPST circuit switch with a full pitch of 0.100 inches (2.54mm) and gold contact finish.

  • Voltage Rating: 24VDC
  • Current Rating: 25mA
  • Actuator Level: raised
  • Actuator Type: slide
  • Electrical Life: 2,000 cycles
  • Mechanical Life: 2,000 cycles
  • Material: Polyphenylene Sulfide (PPS), Glass Filled
  • Height Above Board: 0.173 inches (4.40mm)
  • Length: 0.637 inches (16.18mm)
  • Mounting: SMD (SMT)
  • Washable: no
  • Temperature Range: -20°C to 85°C
  • Category: switches
