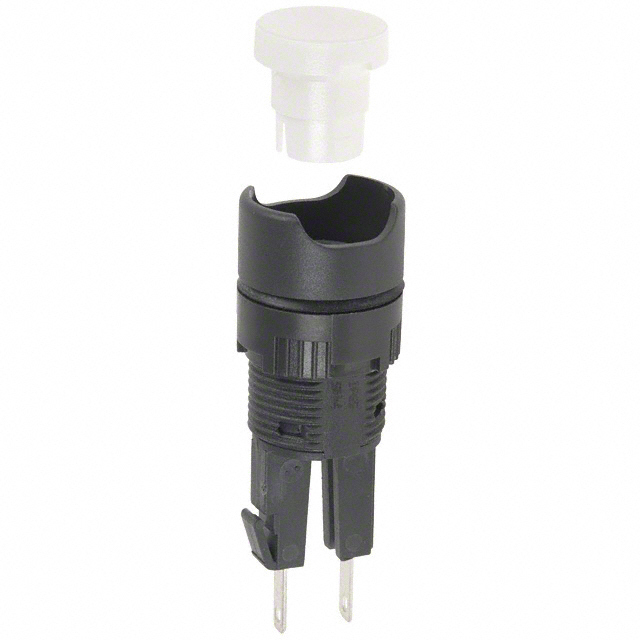

Same model may have multiple batches, images only for reference.
AV1611A800 Apem Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

AV1611A800

Part No AV1611A800
Manufacturer Apem Inc.
Catalog Pushbutton Switches
Description SWITCH PUSHBUTTON SPST 1.5A 250V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting Type Panel Mount, Front
Type Anti-Vandal
Circuit SPST
Switch Function Off-On
Current Rating (Amps) 1.5A (AC), 1A (DC)
Voltage Rating - AC 250 V
Voltage Rating - DC 24 V
Actuator Type Round, Button, Domed
Actuator Marking No Marking
Color - Actuator/Cap Silver
Termination Style Quick Connect - 0.110" (2.8mm)
Ingress Protection IP54 - Dust Protected, Water Resistant
Panel Cutout Dimensions Circular - 16.20mm Dia
Temperature Range - Operating -30°C ~ 70°C
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1556588-AV1611A800
Ultra Librarian 3D Model Ultra Librarian AV1611A800 CAD Model
