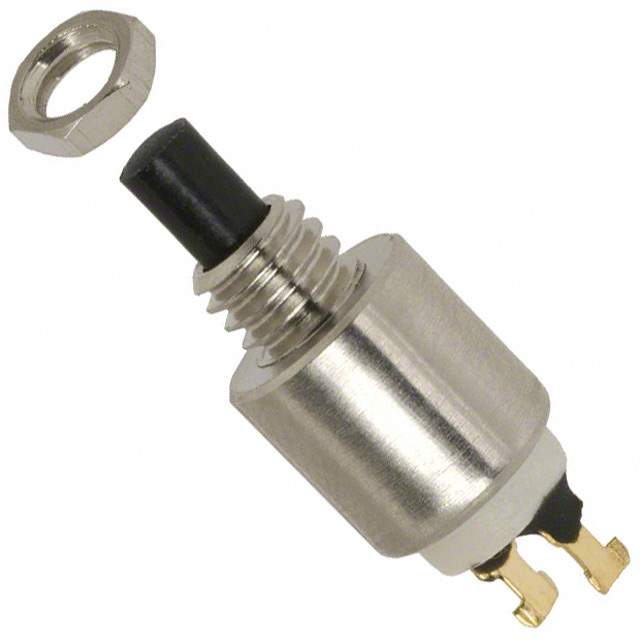

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Mfr APEM Inc.
Series 9000
Package Bulk
Mounting Type Panel Mount, Rear
Type Standard
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 30 V
Actuator Type Round, Plunger
Actuator Marking No Marking
Color - Actuator/Cap Black
Termination Style Solder Lug
Features Epoxy Sealed Terminals
Panel Cutout Dimensions Circular - 4.20mm Dia
Temperature Range - Operating -30°C ~ 65°C
Electrical Life 100,000 Cycles
Base Product Number 9533
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Other Names 679-1011
Standard Package 100
Win Source Part Number 1041755-9533CD
Ultra Librarian 3D Model Ultra Librarian 9533CD CAD Model

Description

The Apem Inc. 9000 is a standard pushbutton switch that is perfect for use in electronic devices.

  • Termination Style: Solder Lug
  • Terminals: Epoxy Sealed
  • Voltage Rating: 30VDC
  • Current Rating: 100mA (DC)
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Estimated Production Lead Time: 100,000 cycles
  • REACH Affected: No
