Same model may have multiple batches, images only for reference.

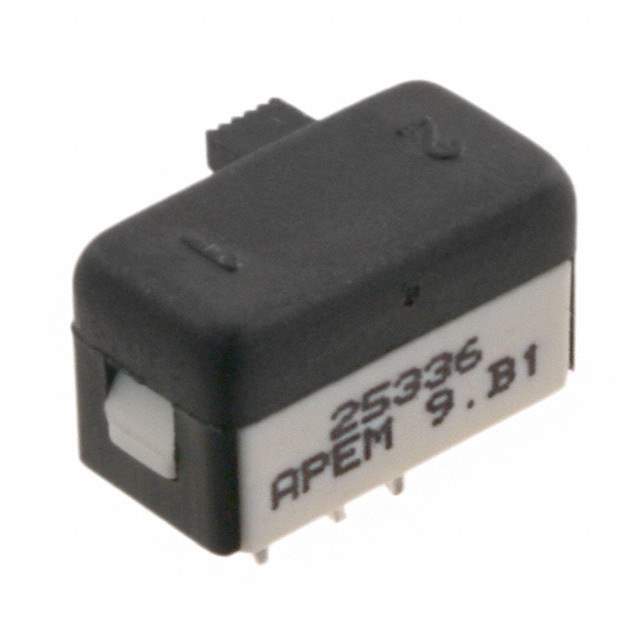

25336NA Real Image
Same model may have multiple batches, images only for reference.

25336NA

Part No 25336NA
Manufacturer Apem Inc.
Catalog Slide Switches
Description SWITCH SLIDE SPDT 4A 125V / Slide Switch SPDT Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr APEM Inc.
Series 25000N
Package Bulk
Circuit SPDT
Contact Timing Not Specified
Switch Function On-On
Current Rating (Amps) 4A (AC), 1A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Standard
Actuator Length 2.30mm
Contact Material Silver (Ag)
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Features Epoxy Sealed Terminals
Temperature Range - Operating -40°C ~ 85°C
Actuator Material Polyamide (PA), Nylon, Glass Filled
Switch Travel 4.00mm
Mechanical Life 20,000 Cycles
Electrical Life 10,000 Cycles
Base Product Number 25336N
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Other Names 25336NA-ND,679-1893
Standard Package 100
Win Source Part Number 1211240-25336NA
Ultra Librarian 3D Model Ultra Librarian 25336NA CAD Model

Description

The 25000N series slide switch from APEM Inc. is a SPDT circuit switch with a voltage rating of 125 V AC and 30 V DC.

  • Circuit: SPDT
  • Voltage Rating: 125 V AC, 30 V DC
  • Actuator Material: Polyamide (PA) and Nylon, glass filled
  • Contact Material: Silver (Ag)
  • Switch Function: On-On
  • Actuator Length: 2.30mm
  • Switch Travel: 4.00mm
  • Seal: Epoxy sealed
  • Terminals: PC Pin
  • Electrical Life: 10,000 cycles
  • Mechanical Life: 20,000 cycles
  • Operating Temperature: -40°C to 85°C
  • Mounting: Through hole, Right Angle
  • Packaging: Bulk of 100 units
  • Alternative Parts (Cross-Reference): 25336NA
