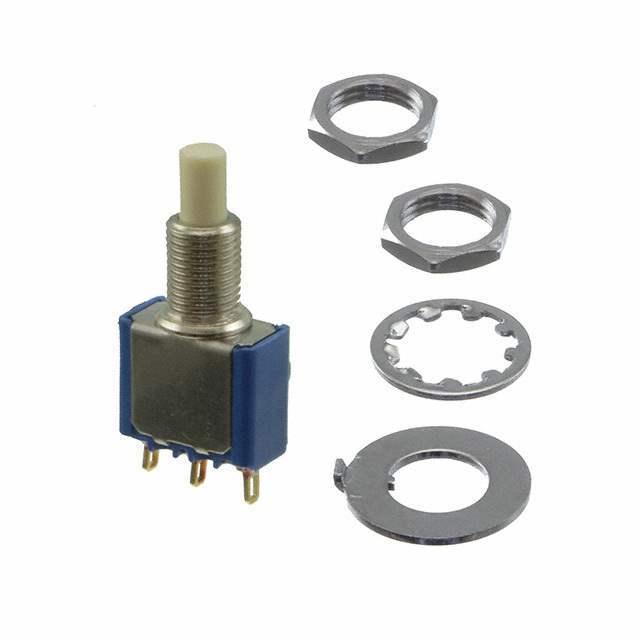

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1208314-18535CD
Manufacturer APEM Inc.
Category Switches -Pushbutton Switches.
Series 18000
Package Bulk
Product Status Active
Mounting Type Panel Mount, Rear
Type Standard
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (DC)
Ultra Librarian 3D Model Ultra Librarian 18535CD CAD Model

Description

Pushbutton Switch SPDT Standard Panel Mount, Rear
