Same model may have multiple batches, images only for reference.

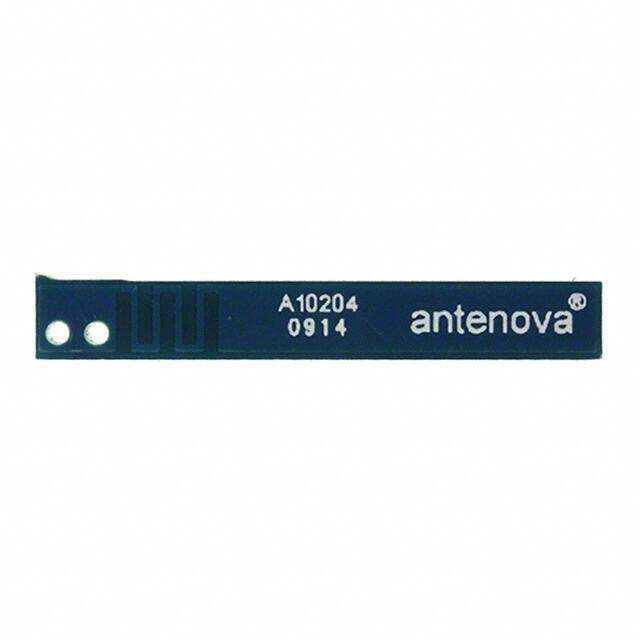

A10204 Real Image
Same model may have multiple batches, images only for reference.

A10204

Part No A10204
Manufacturer Antenova
Catalog RF Antennas
Description RF ANT 1.575GHZ CHIP SOLDER SMD
Datasheet
A10204 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Antennas
Mfr Antenova
Series Brevis
Package Tape & Reel
Product Status Obsolete
RF Family/Standard Navigation
Frequency Group UHF (1GHz ~ 2GHz)
Frequency (Center/Band) 1.575GHz
Antenna Type Chip
Number of Bands 1
VSWR 1.4
Return Loss -17dB
Gain 0dBi
Termination Solder
Mounting Type Surface Mount
Height (Max) 0.126" (3.20mm)
Applications GPS
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 7A994
HTSUS 8529.10.4040
Win Source Part Number 858791-A10204
Ultra Librarian 3D Model Ultra Librarian A10204 CAD Model

Description

The 858791-A10204 is a chip RF antenna designed for GPS applications from Antenova.

  • Return Loss: -17dB
  • VSWR: 1.4
  • Height: 0.126" (3.20mm)
  • Package: Tape & Reel
  • Standard Package Quantity: 2,000 pcs
  • Lifecycle Status: Obsolete
  • Application: Navigation
