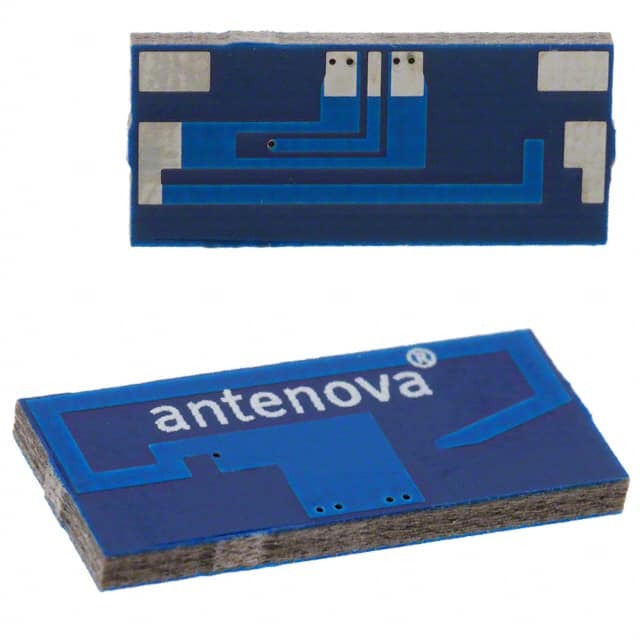

Same model may have multiple batches, images only for reference.
A10137
Same model may have multiple batches, images only for reference.

A10137

Part No A10137
Manufacturer Antenova
Catalog RF Antennas
Description RF ANT 1.575GHZ PCB TRACE SLD
Datasheet
A10137 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Antennas
Mfr Antenova
Series RADIONOVA®
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Obsolete
RF Family/Standard Navigation
Frequency Group UHF (1GHz ~ 2GHz)
Frequency (Center/Band) 1.575GHz
Antenna Type PCB Trace
Number of Bands 1
VSWR 1.5
Return Loss -10dB
Gain -0.2dBi
Termination Solder
Mounting Type Surface Mount
Height (Max) 0.063" (1.60mm)
Applications GPS
Standard Package 1,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 7A994
HTSUS 8529.10.9100
Win Source Part Number 858788-A10137
Ultra Librarian 3D Model Ultra Librarian A10137 CAD Model

Description

The RADIONOVA® RF Antenna (Part Number: 858788-A10137) is a high-performance component designed for GPS applications.

  • Frequency: 1.575GHz
  • VSWR: 1.5
  • Frequency Group: UHF (1GHz ~ 2GHz)
  • Gain: -0.2dBi
  • Termination: Solder
  • Package: Tape & Reel (TR) / Cut Tape (CT)
  • Height: 0.063" (1.60mm)
  • Mounting Type: Surface Mount
  • Standard Package: 1,000 pcs
  • RF Family/Standard: Navigation
  • Lifecycle Status: Obsolete
