Same model may have multiple batches, images only for reference.

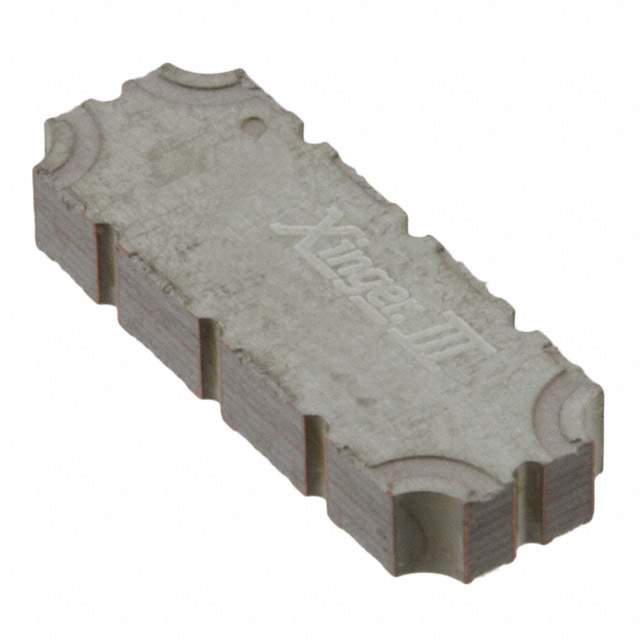

X3DC07E2S Real Image
Same model may have multiple batches, images only for reference.

X3DC07E2S

Part No X3DC07E2S
Manufacturer Anaren
Catalog RF Misc ICs and Modules
Description DOHERTY COMBINER 728-768MHZ SMD / RF IC Doherty Combiner General Purpose 728MHz ~ 768MHz 200W SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Misc ICs and Modules
Mfr TTM Technologies, Inc.
Series Xinger III®
Package Tape & Reel
Function Doherty Combiner
Frequency 728MHz ~ 768MHz
RF Type General Purpose
Secondary Attributes 200W
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Supplier Device Package SMD
Base Product Number X3DC07
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8517.79.0000
Other Names 1173-1116-6,1173-1116-1,1173-1116-2
Standard Package 2,000
Win Source Part Number 1019818-X3DC07E2S
Ultra Librarian 3D Model Ultra Librarian X3DC07E2S CAD Model

Description

The X3DC07E2S is a Doherty combiner used in RF/IF and RFID applications and manufactured by TTM Technologies.

  • Frequency Range: 728MHz ~ 768MHz
  • Series: Xinger III
  • Application: General Purpose
  • Secondary Attribute: 200W
  • Package/Case: 4-SMD, No Lead
  • Package: Tape & Reel
  • REACH: Unaffected
  • ECCN: EAR99
