The REF02AJ/883 from Analog Devices Inc. is a high-precision voltage reference that offers a fixed 5V output with an impressive temperature stability and low noise performance. This device is specifically designed to maintain a stable voltage reference over a wide range of operating conditions, making it an ideal choice for precision data converters, industrial instrumentation, and high-end consumer electronics.

Key Features

• Output Voltage: Fixed 5V with ±0.3% maximum initial error.
• Temperature Coefficient: Excellent temperature stability with a coefficient of 10ppm/°C maximum over the full military temperature range.
• Long-Term Stability: Superior long-term stability of 25ppm/1000 hours at 125°C, ensuring consistent performance over time.
• Low Noise: Low noise performance with a typical output noise of 10μV P-P (0.1Hz to 10Hz).
• Supply Range: Wide supply voltage range from 7V to 40V, providing flexibility in various circuit designs.
• Load Regulation: Excellent load regulation of 25ppm/mA, catering to applications with varying load conditions.
• Quiescent Current: Low quiescent current of 1.4mA (typical), which helps in power-sensitive applications.

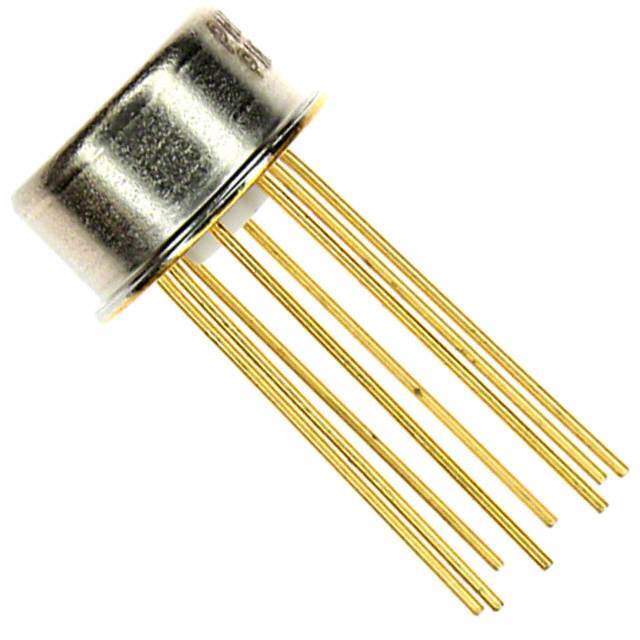

• Package: Available in a hermetically sealed TO-99 package, ensuring robustness and reliability in harsh environments.

Applications

The REF02AJ/883 is versatile and can be used in a range of applications including:

• Digital to Analog Converters (DACs)
• Analog to Digital Converters (ADCs)
• Portable Instrumentation
• Precision Power Supplies
• Industrial Control Systems
• High-precision Measurement Devices

Quality and Reliability

Analog Devices Inc. is renowned for its commitment to quality and reliability, and the REF02AJ/883 is no exception. This product is compliant with the stringent MIL-STD-883 standards, ensuring that it meets the requirements for military and aerospace applications. The device's performance is backed by rigorous testing and quality control processes that Analog Devices is known for.

Note: For detailed technical specifications, application circuits, and additional information, please refer to the REF02AJ/883 datasheet available on the Analog Devices Inc. website or contact their support team for assistance.
