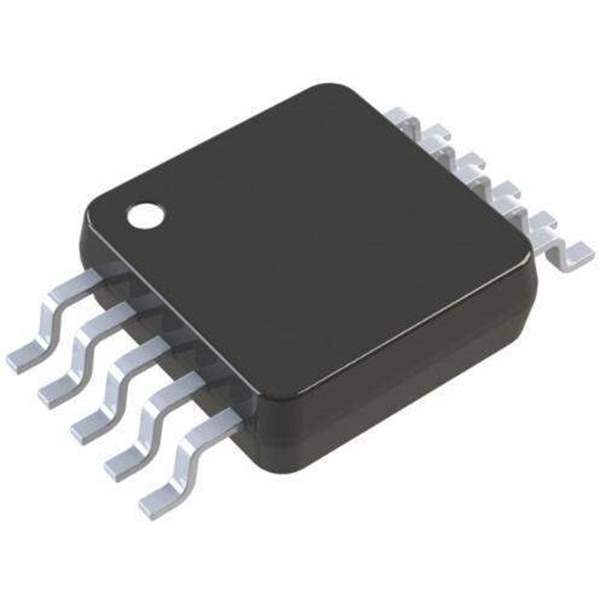

MAX22507EAUB+TAnalog Devices Inc./Maxim Integrated
Same model may have multiple batches, images only for reference.

MAX22507EAUB+T

Part No MAX22507EAUB+T
Manufacturer Analog Devices Inc.
Catalog Interface - Drivers, Receivers, Transceivers
Description 50MBPS RS-485 TRANSCEIVER
Datasheet
MAX22507EAUB+T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Analog Devices Inc./Maxim Integrated
Category Integrated Circuits (ICs) Interface Drivers, Receivers, Transceivers
Packaging Tape & Reel (TR)
Part Status Active
Type Transceiver
Protocol RS422, RS485
Receiver Hysteresis 250 mV
Data Rate 50Mbps
Voltage - Supply 3V ~ 5.5V
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Win Source Part Number WS1304179-MAX22507EAUB+T
Ultra Librarian 3D Model Ultra Librarian MAX22507EAUB+T CAD Model

Description

The MAX22507E/MAX22508E ESD-protected RS-485/ RS-422 full-duplex transceivers are optimized for highspeed communication up to 50Mbps. These transceivers feature integrated hot-swap protection and a fail-safe receiver, ensuring a logic-high on the receiver output when input signals are shorted or open for longer than 10μs (typ). Additionally, a large receiver hysteresis improves noise rejection and signal integrity.
