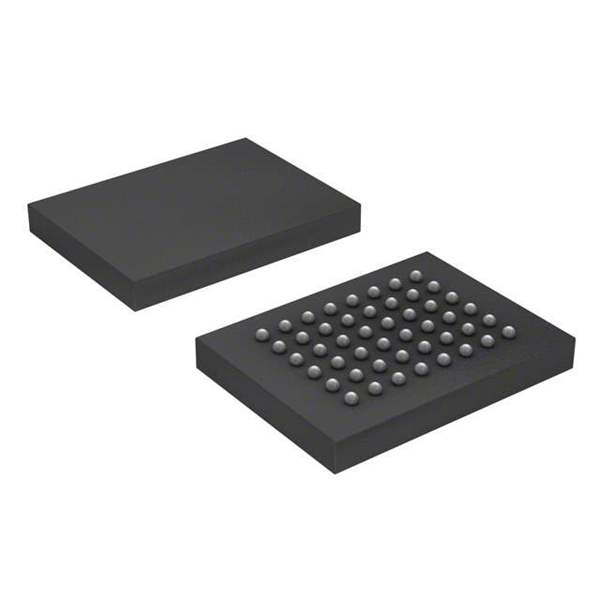

Analog Devices Inc. LTM8053EY#PBF

The LTM8053EY#PBF is a high-performance, step-down μModule (micromodule) regulator from Analog Devices Inc. This innovative module integrates a switching controller, power switches, inductors, and support components into a compact, encapsulated package, designed to simplify the implementation of power supply solutions.

With an input voltage range of 6V to 36V and an adjustable output voltage range from 0.8V to 24V, the LTM8053EY#PBF is capable of delivering an output current up to 3A, making it suitable for a wide array of applications including industrial, automotive, and communications equipment.

The device features high efficiency and a low profile design, with a height of only 2.82mm in the BGA package, which is particularly beneficial for space-constrained applications. Its advanced design also allows for fast transient response and excellent EMI performance, adhering to the stringent EN55022 class B electromagnetic compatibility standard.

For added flexibility, the LTM8053EY#PBF supports selectable switching frequencies, which can be optimized for efficiency or component size. The device offers several modes of operation, including Burst Mode® operation, which provides high efficiency at low output currents, and a synchronization option to reduce interference and noise.

Other notable features include its ability to support parallel operation for increased output current, internal compensation to minimize external components, and a wide operating temperature range, making it reliable in extreme conditions. The module is also equipped with a variety of protection features such as overvoltage, overcurrent, and overtemperature protection, ensuring the longevity and safety of both the regulator and the system it powers.

The LTM8053EY#PBF is RoHS compliant and comes in a rugged, thermally enhanced package, which ensures robust performance even in harsh environments. With its ease of use, integrated design, and comprehensive feature set, this μModule regulator is an excellent choice for designers looking to reduce development time while achieving a high-performance power management solution.
