Analog Devices Inc. Presents the LTM8003HY: A High-Efficiency, µModule Step-Down Power Converter

The LTM8003HY is a part of Analog Devices Inc.'s extensive µModule (micromodule) product line, designed to offer a high-efficiency, compact, and easy-to-use step-down DC/DC power converter solution. The LTM8003HY is specifically engineered to meet the needs of space-constrained applications while providing robust performance in a range of environments.

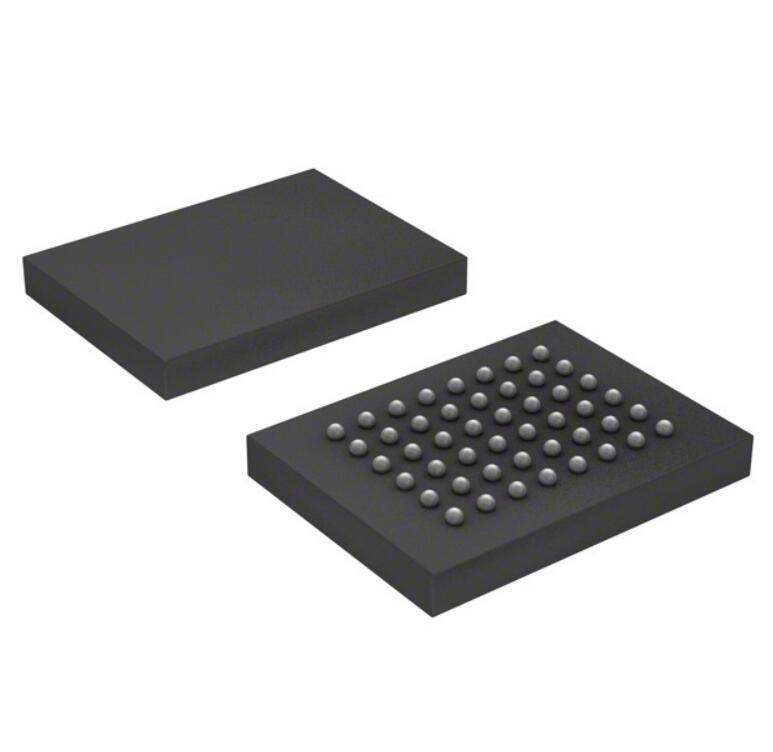

This versatile power module integrates a switching regulator, inductor, and various supporting components within a compact, thermally enhanced 11.25mm x 15mm x 4.92mm BGA (ball grid array) package. Its efficient design allows for an input voltage range of 3.4V to 40V, making it suitable for a variety of supply sources, including automotive batteries and industrial supplies.

The LTM8003HY delivers a continuous output current up to 3A, with an output voltage range that can be set from 0.97V to 18V via a single resistor. This feature allows designers to tailor the output to precisely match the requirements of the target application, ensuring optimal performance.

One of the key attributes of the LTM8003HY is its Silent Switcher® architecture, which minimizes EMI emissions, a critical consideration in noise-sensitive applications such as automotive, industrial, and telecommunications systems. This architecture, combined with its internal EMI filter, significantly simplifies the design process by reducing the need for additional external noise-reduction components.

The device also boasts a high level of thermal performance due to its BGA package, which enhances heat dissipation and enables operation in high-temperature environments. This makes the LTM8003HY an ideal choice for automotive and industrial applications where reliability under thermal stress is a necessity.

Additional features of the LTM8003HY include adjustable switching frequency, synchronization capability, and a suite of protection features such as overvoltage, overcurrent, and overtemperature protection. These integrated protections contribute to the longevity and safety of the end application.

For designers seeking a high-efficiency, reliable, and easy-to-integrate power solution, the LTM8003HY µModule from Analog Devices Inc. offers a compelling combination of performance, flexibility, and convenience, packaged in a form factor that is well-suited to a wide array of demanding applications.
