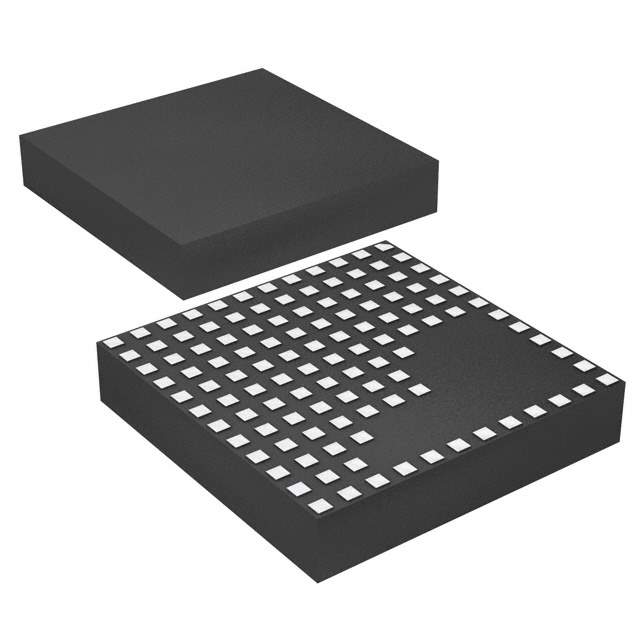

Analog Devices Inc. LTM4601HVEV#PBF Power Module

The LTM4601HVEV#PBF is a high-efficiency, DC/DC step-down power module by Analog Devices Inc. designed to meet the rigorous standards of today's demanding power supply applications. This advanced module is a complete system-in-a-package (SiP), integrating the inductor, power switches, DC/DC controller, and all the supporting components into a compact, encapsulated device. With its robust design, the LTM4601HVEV#PBF is perfect for telecommunications, industrial, and automotive systems where space, efficiency, and reliability are critical.

Key Features:

• Wide Input Voltage Range: The module operates from a 4.5V to 20V input voltage range, making it versatile for various applications and able to manage fluctuating input supplies.
• High Output Voltage Accuracy: Ensures precise voltage regulation, which is essential for sensitive electronic components, with an output voltage range of 0.6V to 5V.
• High Efficiency: With its advanced design, the LTM4601HVEV#PBF can achieve up to 92% efficiency, reducing heat generation and improving system reliability.
• Fast Transient Response: The module's fast transient response ensures stable performance even with rapid load changes, which is crucial for high-performance processors and FPGAs.
• Thermal Performance: The encapsulated design enhances thermal performance, allowing for operation in environments with elevated temperatures.
• Adjustable Switching Frequency: Users can set the switching frequency from 250kHz to 780kHz or synchronize it to an external clock.

Applications:

• Telecommunications Infrastructure
• Industrial Equipment
• Automotive Electronics
• Networking and Datacom Systems
• High-Density Distributed Power Systems

The LTM4601HVEV#PBF is designed with protection features such as overvoltage, overcurrent, and over-temperature protection, ensuring safe operation under abnormal conditions. The module's compact (15mm x 15mm x 2.82mm) LGA package is suitable for space-constrained applications while providing excellent electrical and thermal performance. With its easy-to-use design, the LTM4601HVEV#PBF significantly simplifies the implementation of complex power supply circuits, reducing design time, and accelerating time-to-market for your products.
