Product Overview: LTC6994HS6-1#TRMPBF

The LTC6994HS6-1#TRMPBF is a versatile timer device from Analog Devices Inc., designed to provide precision timing control in a wide range of applications. This compact and high-performance component is part of the TimerBlox® family, which is known for its ease of use and minimal external components. The LTC6994 is a monostable pulse generator, also known as a one-shot timer, which can be configured with a single resistor.

Key Features

• Adjustable Timer Range: The LTC6994HS6-1#TRMPBF offers an adjustable time range from 1μs to 33.6 seconds, allowing for precise timing adjustments to suit various applications.
• High Accuracy: With an accuracy of 0.1% initial and 0.5% over temperature, this device ensures reliable and consistent timing for critical applications.
• Low Power Consumption: Designed for power-sensitive applications, it consumes minimal power, with a quiescent current of 55μA at 2.5V.
• Supply Voltage Range: The device operates over a wide supply voltage range from 2.25V to 5.5V, making it suitable for battery-powered and portable devices.
• CMOS Output Driver: The LTC6994HS6-1#TRMPBF features a CMOS output driver that can source or sink up to 20mA, allowing it to drive a variety of loads directly.
• Temperature Stability: Temperature stability is ensured over the full operating temperature range of -40°C to 125°C.

Applications

The LTC6994HS6-1#TRMPBF is ideal for a variety of timing applications, including:

• Delay timers
• Pulse generation
• Frequency discrimination
• Time-based sequencing
• Debouncing switches and buttons

Package and Quality

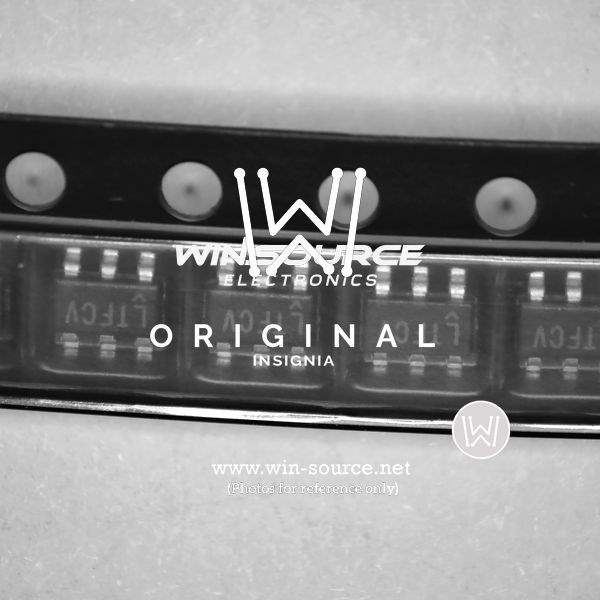

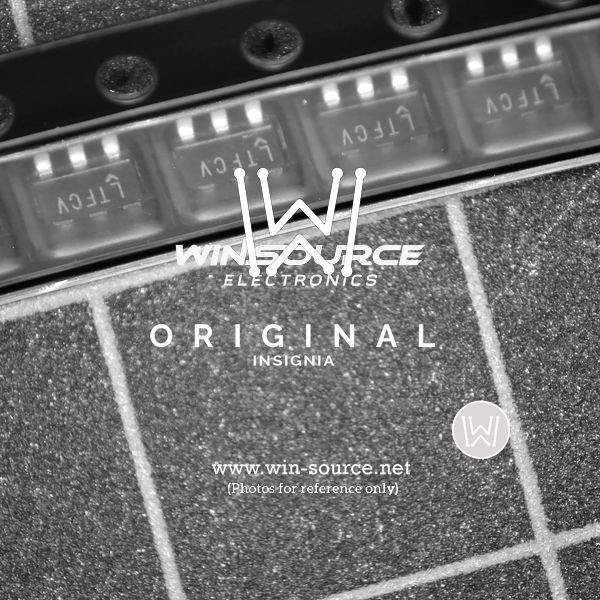

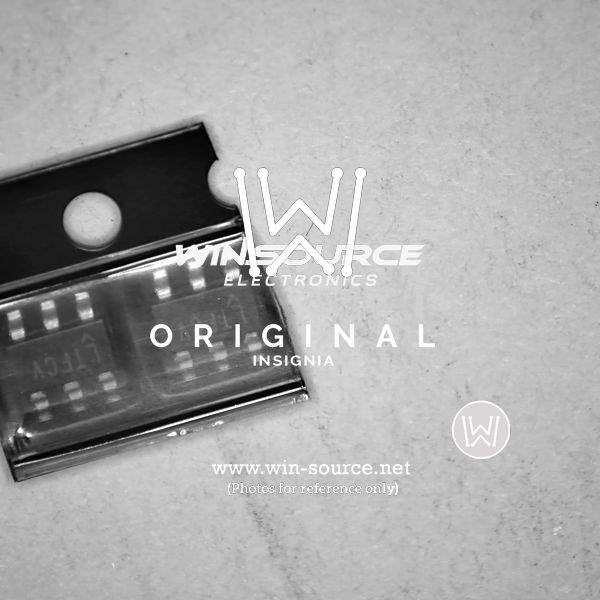

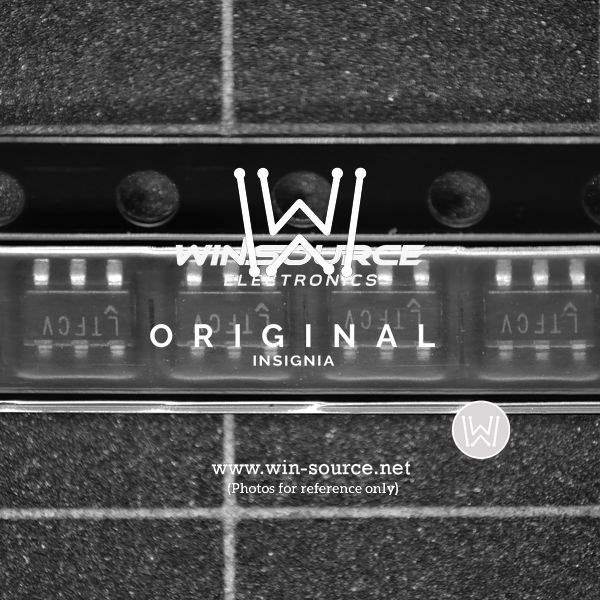

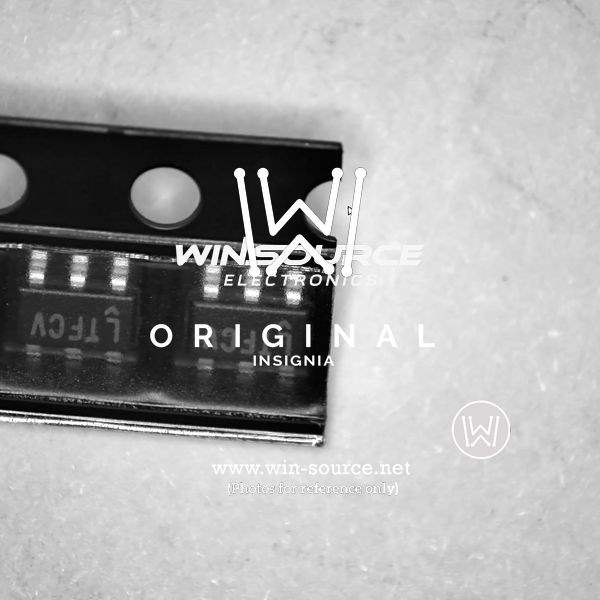

The device comes in a compact SOT-23 package, which is suitable for space-constrained applications. It is also available in tape and reel packaging for automated assembly processes. The LTC6994HS6-1#TRMPBF is manufactured by Analog Devices Inc., a leader in high-performance analog technology, ensuring high quality and reliability for your designs.

With its flexible configuration, high precision, and low power consumption, the LTC6994HS6-1#TRMPBF is an excellent choice for designers looking to add accurate timing functionality to their electronic systems.
