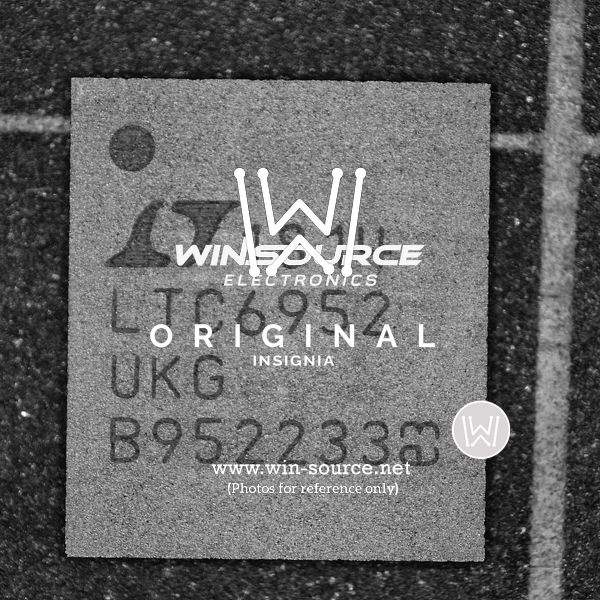

Analog Devices Inc. LTC6952IUKG#PBF Product Overview

The LTC6952IUKG#PBF from Analog Devices Inc. is a high-performance, low jitter, fully integrated phase-locked loop (PLL) with multiple outputs designed to meet the stringent requirements of high-speed communication systems and data converters. This versatile PLL includes a low noise, wideband integer feedback fractional-N frequency synthesizer that can be used for clock generation, clock distribution, and noise reduction in a variety of applications.

Key Features

• Multiple Outputs: The LTC6952IUKG#PBF provides five low jitter outputs, each of which can be independently programmed for different frequencies and phases, making it ideal for complex systems requiring multiple clock domains.
• Wide Frequency Range: It operates over a wide frequency range, accommodating various system requirements and allowing for flexible design options.
• Low Phase Noise: With exceptionally low phase noise and spurious performance, this PLL ensures high signal integrity, which is crucial for applications requiring precise timing and synchronization.
• Programmable: The device features a serial interface for programming and control, providing ease of use and the ability to dynamically adjust settings as needed.
• Integrated VCO: The LTC6952IUKG#PBF includes an integrated voltage-controlled oscillator (VCO) with a broad tuning range, simplifying the design process and reducing the need for external components.
• Temperature Range: It is designed to operate reliably over an industrial temperature range, ensuring consistent performance in various environments.

Applications

The LTC6952IUKG#PBF is well-suited for a range of applications, including but not limited to:

• High-speed data acquisition systems
• Wireless infrastructure
• Test and measurement equipment
• Data communication and telecommunication systems
• Phased array radar systems
• High-performance computing

With its robust feature set and flexibility, the LTC6952IUKG#PBF is an excellent choice for designers looking to leverage the performance and reliability of Analog Devices' technology in their next project. Its integration capabilities and high-quality signal generation make it a cornerstone component for precision-dependent systems.
