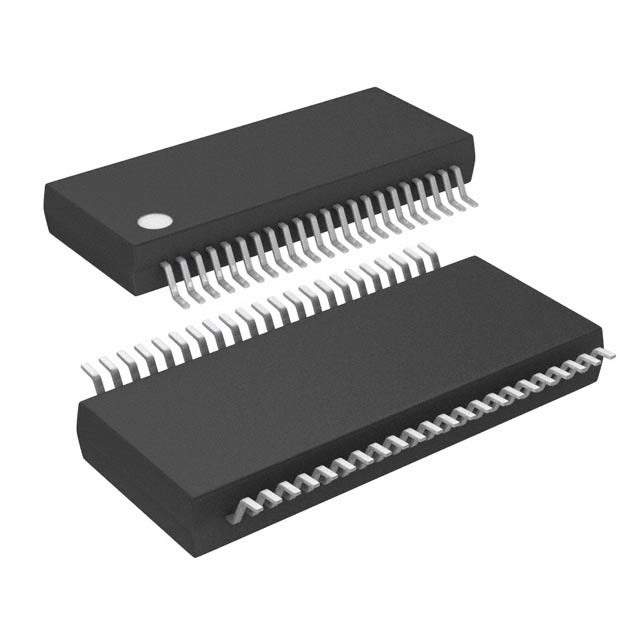

Analog Devices Inc. LTC6810HG-1#3ZZPBF High Voltage Battery Monitor

The LTC6810HG-1#3ZZPBF is a state-of-the-art battery stack monitor that extends the performance and reliability of high voltage battery systems used in electric vehicles, energy storage, and similar applications. Manufactured by Analog Devices Inc., a leader in precision high-performance electronics, this integrated circuit (IC) is specifically designed to accurately measure battery cell voltages in serially connected battery stacks.

Key Features

• High Voltage Capability: The LTC6810 can monitor up to 12 series-connected battery cells with a total measurement range of 0V to 60V, ensuring compatibility with various battery chemistries and configurations.
• High Accuracy: It offers a maximum total measurement error of less than 1.2mV, which is critical for balanced charging and discharging, thereby prolonging battery life and ensuring safety.
• Robust Communication: Features a high noise immunity SPI interface that can daisy-chain multiple devices for synchronized voltage monitoring of long strings of batteries.
• Fast Data Acquisition: Capable of measuring all cell voltages within 290μs, making it suitable for real-time monitoring applications.
• Integrated Diagnostics: Comes with built-in diagnostic features that help detect and report faults, enhancing the reliability of the battery management system (BMS).
• Temperature Monitoring: Supports external temperature sensors for monitoring cell temperatures, which is crucial for maintaining optimal battery performance and safety.
• Low Power Modes: Offers multiple low power operating modes to reduce power consumption when full-time monitoring is not required.

Applications

The LTC6810HG-1#3ZZPBF is ideal for a range of applications where high voltage and precision are required, including:

• Electric vehicles (EVs) and hybrid electric vehicles (HEVs)
• Energy storage systems (ESS)
• Backup power systems
• Uninterruptible power supplies (UPS)

With its robust design and advanced features, the LTC6810HG-1#3ZZPBF from Analog Devices Inc. is an essential component for any advanced battery management system looking to ensure the safety, efficiency, and longevity of high voltage battery packs.
