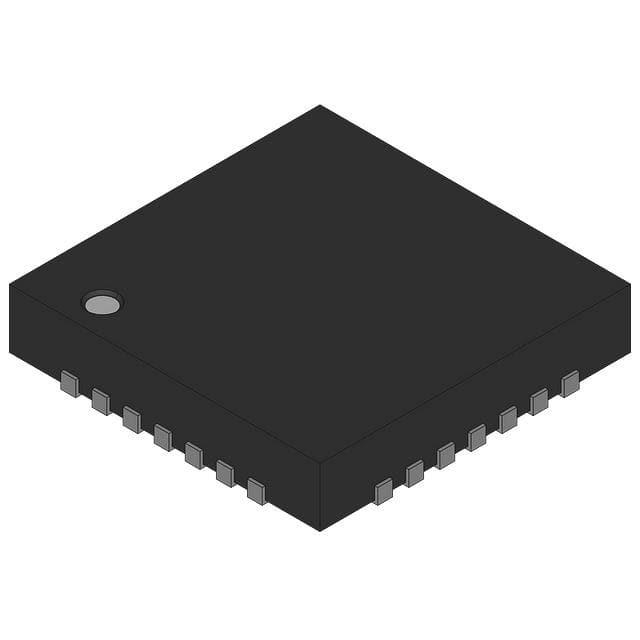

The LTC4236IUFD-1#PBF from Analog Devices Inc. is a high-performance Hot Swap™ controller and power monitor that allows safe board insertion and removal from a live backplane. It is designed to protect low-voltage, high-current supplies up to 100V with its integrated MOSFET gate drivers. This robust component is housed in a compact 28-lead 4mm × 5mm QFN package, making it suitable for dense PCB layouts.

Featuring a wide operating voltage range, the LTC4236IUFD-1#PBF ensures compatibility with various system voltages. It provides precise control over the inrush current, preventing the supply voltage from drooping during hot insertion. This is achieved through programmable soft-start and dV/dt ramp-up of the external N-channel MOSFETs, which are driven by the controller.

The device also includes advanced monitoring capabilities, such as overcurrent fault protection, to safeguard the system against excessive loads or short circuits. Its power good output signals when the output voltage is within nominal range, ensuring reliable system start-up and operation. Furthermore, the LTC4236IUFD-1#PBF offers a current monitor output that can be used to observe the load current in real-time, making it a valuable tool for system diagnostics and power management.

For enhanced versatility, the LTC4236IUFD-1#PBF supports daisy-chaining of multiple devices, which allows for the management of more than one supply rail or the distribution of the load among several MOSFETs. This feature is especially useful in complex systems requiring multiple power domains or higher power distribution capabilities.

Key specifications include an adjustable overcurrent trip level, undervoltage and overvoltage lockout, and a fault timer for auto-retry. With its robust feature set, the LTC4236IUFD-1#PBF from Analog Devices Inc. is an ideal choice for telecommunications, data centers, industrial, and avionics systems where reliable power management and monitoring are critical.
