Analog Devices Inc. HMC924LC5TR Product Overview

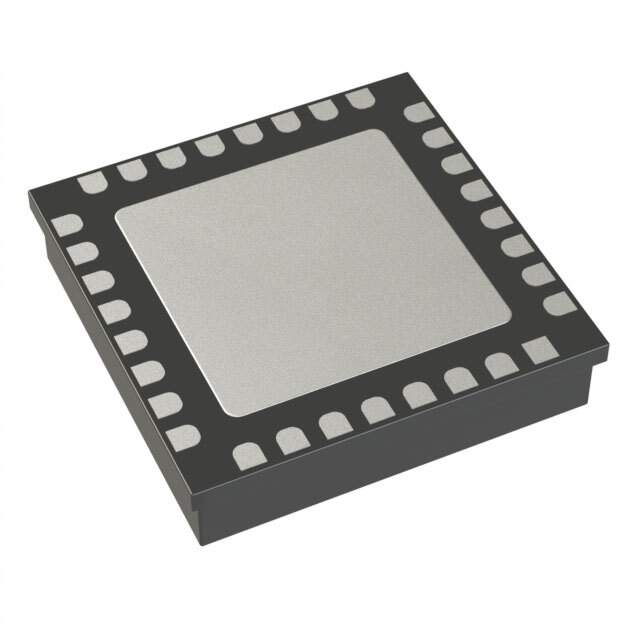

The HMC924LC5TR from Analog Devices Inc. is a high-performance, GaAs MMIC SPDT (Single Pole Double Throw) switch that operates within the frequency range of DC to 28 GHz. This switch is part of a series designed to cater to a wide array of applications, including military and space, test instrumentation, fiber optics, and broadband telecom equipment. It is housed in a compact 5x5 mm QFN leadless package, making it suitable for applications where space is at a premium.

The switch features non-reflective switching characteristics, which is crucial for maintaining signal integrity in sensitive RF paths. With an insertion loss of less than 2.5 dB and isolation of 45 dB at 20 GHz, the HMC924LC5TR ensures minimal signal loss and excellent cross-talk performance, which is essential for maintaining the purity of high-frequency signals.

One of the key attributes of the HMC924LC5TR is its fast switching speed, with a typical switching time of 12 ns, making it suitable for systems that require rapid signal routing changes. This characteristic is particularly beneficial in phased array radar systems, electronic warfare, and other defense-related applications where response time can be critical.

The switch also boasts impressive power handling capabilities, with an input P1dB of 23 dBm, ensuring that it can handle moderate power levels without compromising performance. This feature, along with its wide operating temperature range of -40°C to +85°C, makes the HMC924LC5TR robust enough to operate in harsh environments.

Furthermore, the HMC924LC5TR is designed with a single positive control voltage of 0/+5V, simplifying the power supply requirements and making it easier to integrate into existing systems. The switch also includes an on-chip binary decoder, reducing the number of required control lines, which is beneficial for designs with limited space or complexity constraints.

With its combination of performance, speed, and compact form factor, the HMC924LC5TR from Analog Devices Inc. is an exemplary choice for designers looking to optimize their RF and microwave signal routing with a reliable, high-quality component.
