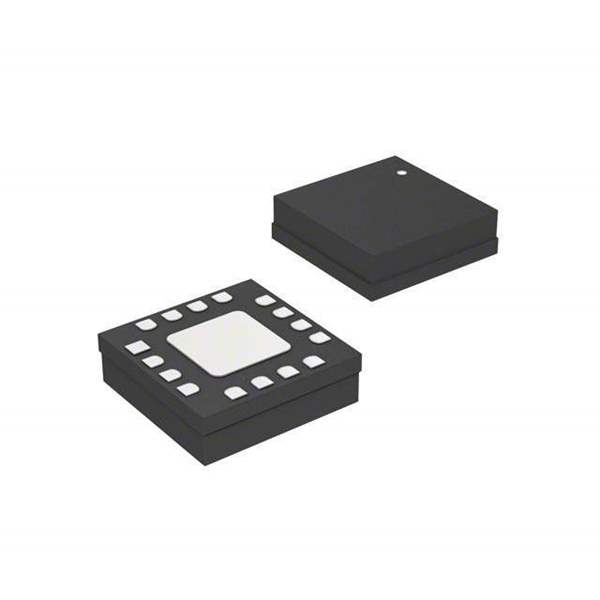

Product Overview: HMC802LP3ETR by Analog Devices Inc.

The HMC802LP3ETR is a high-performance, GaAs MMIC SPDT (Single Pole Double Throw) switch developed by Analog Devices Inc., a leading company in the semiconductor industry. This switch is designed for use in a wide range of RF and microwave applications, including wireless infrastructure, test equipment, and military systems. It offers an excellent combination of low insertion loss, high isolation, and fast switching speed, making it a versatile component for various high-frequency switching applications.

Key Features

• Frequency Range: The HMC802LP3ETR operates over a broad frequency range, making it suitable for diverse applications from DC to 3.5 GHz.
• Low Insertion Loss: With an insertion loss of typically 1.0 dB at 2 GHz, the switch ensures minimal signal attenuation, preserving signal integrity through the switching process.
• High Isolation: The device boasts high isolation between ports, typically 45 dB at 2 GHz, which prevents signal leakage and crosstalk between the RF paths.
• Fast Switching Speed: It offers a fast switching speed of 6 ns, facilitating quick transitions between signal paths for high-speed communication and testing systems.
• High Linearity: The switch provides high linearity with an input IP3 of +55 dBm, ensuring minimal distortion in signal processing applications.
• Power Handling: The HMC802LP3ETR is capable of handling up to +27 dBm of input power, making it robust for various transmission scenarios.
• Compact Package: Housed in a compact 3x3 mm QFN package, it is suitable for space-constrained applications without sacrificing performance.

Applications

• Wireless Infrastructure (e.g., base stations, repeaters)
• Test and Measurement Equipment
• Defense and Aerospace Systems
• Satellite Communications

The HMC802LP3ETR by Analog Devices Inc. is a testament to the company's commitment to providing high-quality RF components that meet the rigorous demands of modern communication and electronic systems. With its robust performance characteristics and versatile application range, this SPDT switch is an excellent choice for engineers looking to enhance their RF signal routing capabilities.
