The HMC749LC3CTR from Analog Devices Inc. is a high-performance, double-balanced mixer IC designed for RF and microwave applications. This device is part of Analog Devices' Hittite Microwave product line, renowned for its innovative and reliable components used in communication systems, aerospace, and defense industries.

Key Features

• Frequency Range: The HMC749LC3CTR operates over a broad frequency range, making it versatile for various applications. It supports RF and LO frequencies from 6 GHz to 16 GHz and IF frequencies from DC to 3 GHz.
• Conversion Gain: This mixer offers a high conversion gain, which reduces the need for additional amplification stages in the signal chain and simplifies overall system design.
• Linearity: Exhibiting excellent linearity, the HMC749LC3CTR ensures signal integrity and minimizes distortion, crucial for high-performance communication systems.
• LO/RF Isolation: It provides outstanding LO to RF isolation, which prevents the local oscillator signal from leaking into the RF path, a critical feature for maintaining signal purity.

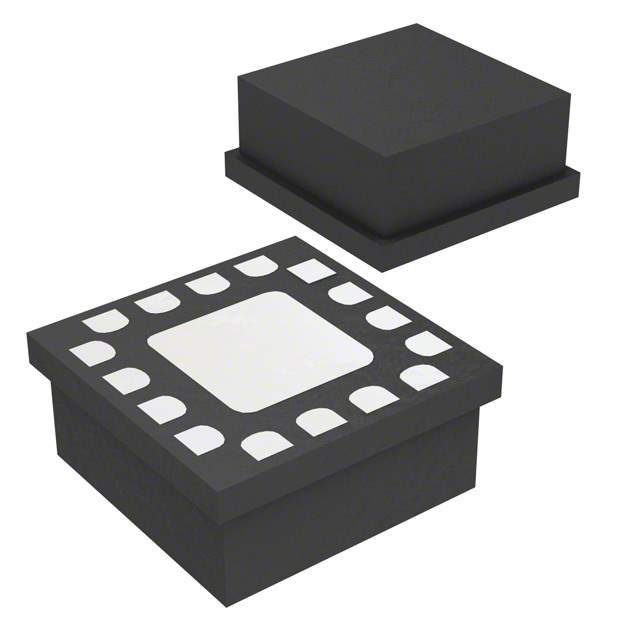

• Package: The device comes in a compact, 3x3 mm ceramic QFN package that is suitable for space-constrained applications without compromising performance.
• Applications: Ideal for use in point-to-point radios, VSAT, military & space, test equipment, and broadband applications.

Product Specifications

Parameter Value Manufacturer Analog Devices Inc. Part Number HMC749LC3CTR Product Category RF Mixer Package / Case 3x3 mm QFN RoHS Compliant

The HMC749LC3CTR is a testament to Analog Devices' commitment to providing cutting-edge technology that enhances system performance and reliability. This mixer is an essential component for engineers looking to optimize their RF and microwave signal chains for both commercial and military applications.
