The HMC715LP3E from Analog Devices Inc. is a high-performance, GaAs, PHEMT, MMIC, Low Noise Amplifier (LNA) that operates in the frequency range of 0.5 GHz to 40 GHz. This versatile LNA is designed to offer excellent noise figure performance and high gain, making it an ideal choice for a wide range of applications, including point-to-point radios, VSAT, military & space, and test instrumentation.

Key Features

• Frequency Range: The HMC715LP3E operates over a broad frequency range, making it suitable for multi-band systems and complex RF chains.
• Low Noise Figure: With a low noise figure, this LNA provides high sensitivity for receiver applications, ensuring clear signal reception and processing.
• High Gain: The device offers high gain, which is essential for maintaining signal integrity across long transmission paths and for boosting weak signals to usable levels.
• Output Power: The HMC715LP3E delivers a high output power that can drive subsequent stages in the signal chain without the need for additional amplification.

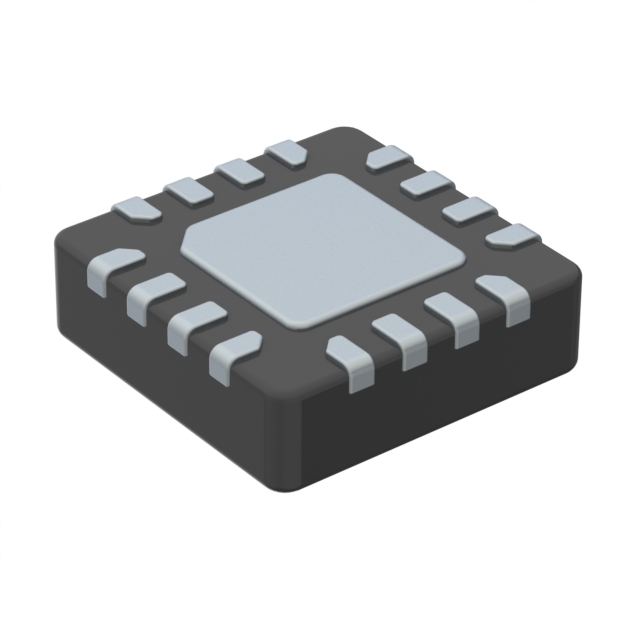

• Package: Housed in a compact 3x3 mm QFN package, the HMC715LP3E is designed for space-constrained applications where performance cannot be compromised.

Applications

The versatility of the HMC715LP3E makes it suitable for various high-frequency applications. Its performance characteristics enable it to be used in:

• Fiber Optic systems
• Test Equipment and Sensors
• Telecom Infrastructure
• Satellite Communications
• Electronic Warfare and Radar Systems

Additional Information

The HMC715LP3E is part of Analog Devices Inc.'s extensive range of RF components that are known for their reliability and performance. Analog Devices Inc. provides comprehensive technical support for their products, including detailed datasheets, application notes, and design tools to assist engineers in integrating the HMC715LP3E into their designs.
