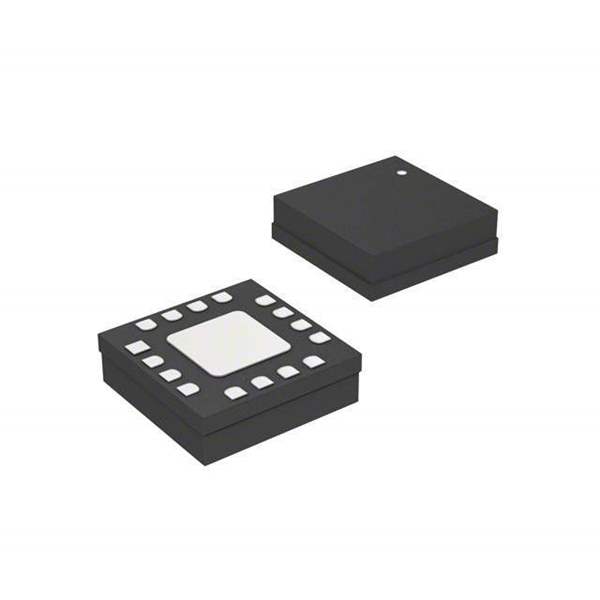

Product Overview: HMC712LP3CETR by Analog Devices Inc.

The HMC712LP3CETR, crafted by the renowned Analog Devices Inc., is a high-performance, wideband, double-balanced mixer. This sophisticated electronic component is designed to facilitate frequency conversion in RF and IF systems within a broad array of applications, such as point-to-point and point-to-multipoint radios, military and space, as well as test equipment and sensors.

Key Features

• Frequency Range: The device operates over an extensive frequency range, making it versatile for various applications. The RF and LO frequency range spans from 6 GHz to 16 GHz, while the IF frequency covers DC to 3 GHz.
• Conversion Loss: With a typical conversion loss of 9 dB, the HMC712LP3CETR ensures efficient signal translation between different frequency bands.
• LO/RF Isolation: The mixer provides excellent isolation between the LO and RF ports, typically 25 dB, which helps in maintaining signal integrity and reducing interference.
• Input IP3: The device boasts a high input third-order intercept point (IP3) of 25 dBm, indicating its ability to handle high power levels and maintain linearity.
• Package: It comes in a compact, RoHS-compliant, 3x3 mm QFN package, suitable for space-constrained applications while providing robust performance.

Applications

The HMC712LP3CETR is ideal for a wide range of applications due to its high linearity and broad frequency range. It is commonly used in:

• Wireless Infrastructure (4G/5G)
• Satellite Communications
• RFID Systems
• Test Instrumentation
• Electronic Warfare

Conclusion

Analog Devices Inc.'s HMC712LP3CETR stands out as a high-quality mixer component that offers designers the flexibility and performance required for advanced RF and IF systems. Its wide frequency range, excellent isolation, and high linearity make it a top choice for engineers looking to develop sophisticated communication systems and signal processing equipment.
