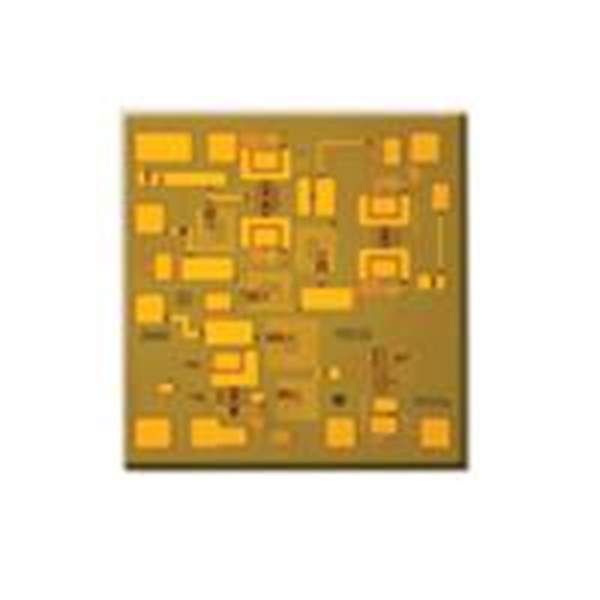

The HMC576 from Analog Devices Inc. is a high-performance, low noise amplifier (LNA) that operates in the frequency range from 24 GHz to 34 GHz. This product is part of the Hittite microwave product line from Analog Devices and is designed to offer exceptional signal amplification with minimal added noise, making it an ideal choice for a variety of demanding RF and microwave applications.

Key Features

• Frequency Range: 24 GHz to 34 GHz, covering the K-band and parts of the Ka-band, suitable for radar, satellite, and telecommunication systems.
• Gain: High gain of 17 dB provides significant signal amplification, enhancing the overall performance of RF systems.
• Noise Figure: With a low noise figure of 2.5 dB, this LNA maintains signal integrity by adding minimal noise to the received signal.
• Output Power: The HMC576 delivers +21 dBm of saturated output power (P1dB), ensuring strong signal transmission even in challenging environments.
• Biasing Flexibility: This LNA operates with a +3.3V to +5V bias voltage, providing design flexibility for different system requirements.

Applications

The HMC576 is versatile and can be used in a range of applications. These include:

• Point-to-point and point-to-multipoint radios
• Test equipment and sensors
• Military and space applications
• Telecommunication infrastructure
• Radar systems

Quality and Reliability

Analog Devices Inc. is renowned for its commitment to quality and reliability, and the HMC576 is no exception. It is fabricated using a Gallium Arsenide (GaAs) process, which ensures high performance and durability over a wide range of environmental conditions. Furthermore, the HMC576 comes in a compact, RoHS-compliant package, making it suitable for integration into a wide array of systems while adhering to environmental regulations.

With its robust feature set and flexible applications, the HMC576 LNA from Analog Devices Inc. is an excellent choice for designers looking to enhance their high-frequency systems with a reliable, high-quality amplifier.
