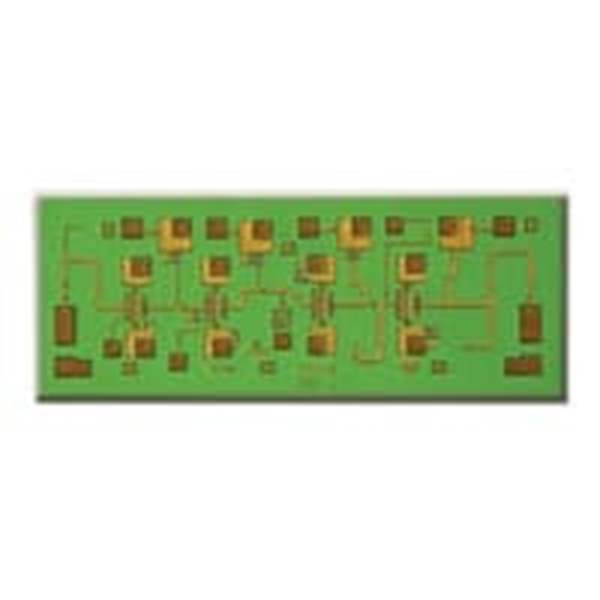

Product Overview: HMC566 from Analog Devices Inc.

The HMC566 by Analog Devices Inc. is a high-performance Voltage-Controlled Oscillator (VCO) designed to address the demanding needs of RF and microwave communication systems. This VCO operates over a frequency range of 4 GHz to 8 GHz, making it an excellent choice for applications in point-to-point radios, VSAT, military & space, and test instrumentation.

Key Features

• Wide Frequency Range: With its broad operating frequency, the HMC566 can be utilized in various applications, offering exceptional versatility.
• High Output Power: The device delivers a robust output power level, ensuring strong signal transmission and reception.
• Low Phase Noise: One of the critical attributes of the HMC566 is its low phase noise performance, which is essential for high-fidelity signal processing and communication.
• Excellent Tuning Linearity: The VCO offers excellent tuning linearity, which simplifies frequency planning and system design.
• Compact Package: Housed in a compact RoHS-compliant SMT package, the HMC566 is designed for easy integration into space-constrained applications.

Applications

The versatility of the HMC566 makes it suitable for a wide range of applications, including:

• Fixed Wireless Access (FWA)
• Satellite Communications (SATCOM)
• Test and Measurement Equipment
• Military and Space Applications
• Point-to-Point and Point-to-Multipoint Radios

Technical Specifications

With its robust design and high-quality performance, the HMC566 from Analog Devices Inc. is an optimal solution for designers looking to enhance the performance of their high-frequency communication systems.
